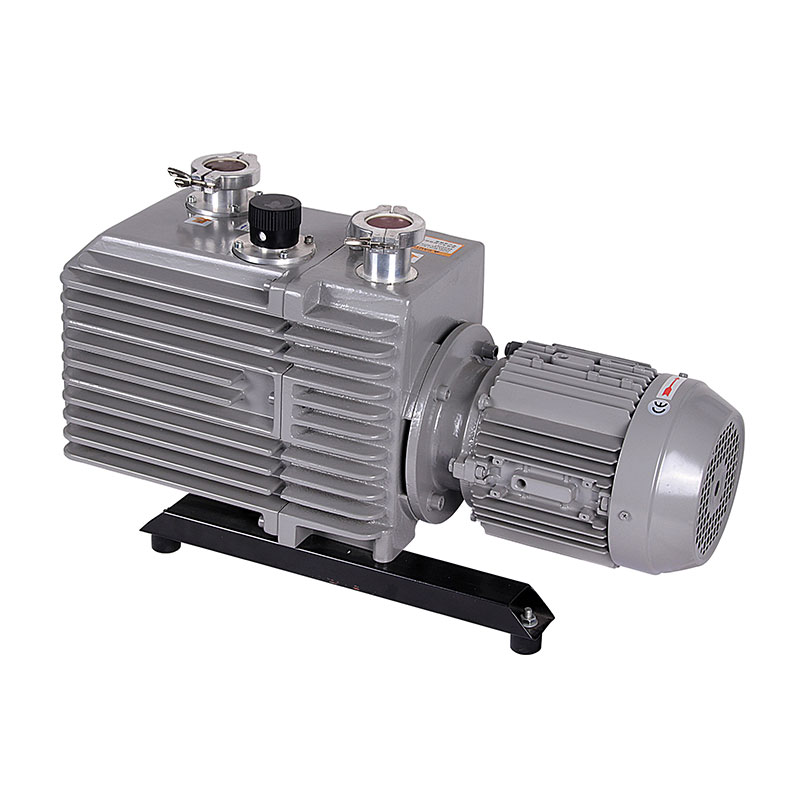

Hokaido 2RH036D Double-stage Oil-lubricated rotary vane vacuum pump (0.75 Kw, 18 m³/h (50 Hz), 21.6 m³/h (60 Hz), 6.0x10-3 mbar)

Pumping Speed:

(50Hz): 18m3/h

(60Hz): 21.6m3/h

Ultimate Pressure w/o gas ballet: 4.0x10^-4 mbar

Ultimate total Pressure w/o gas ballet: 3.0x10^-3 mbar

Ultimate Pressure w/gas ballet: 6.0x10^-3 mbar

Water VaporΔP: 30 mbar

Inlet/Outlet Flange: KF25"

Voltage:

(50Hz): 220/380v

(60Hz): 220/380v

Nominal motor rating: 0.75 Kw

Current:

(50Hz): 13.4/7.70A

(60Hz): 16.1/9.24A

Motor speed:

(50Hz): 1440

(60Hz): 1720

Noise: 55/58 dB(A)

Oil (min/max): 1.0/1.5L

Weight(w/o oil): 31Kg

Datasheet
