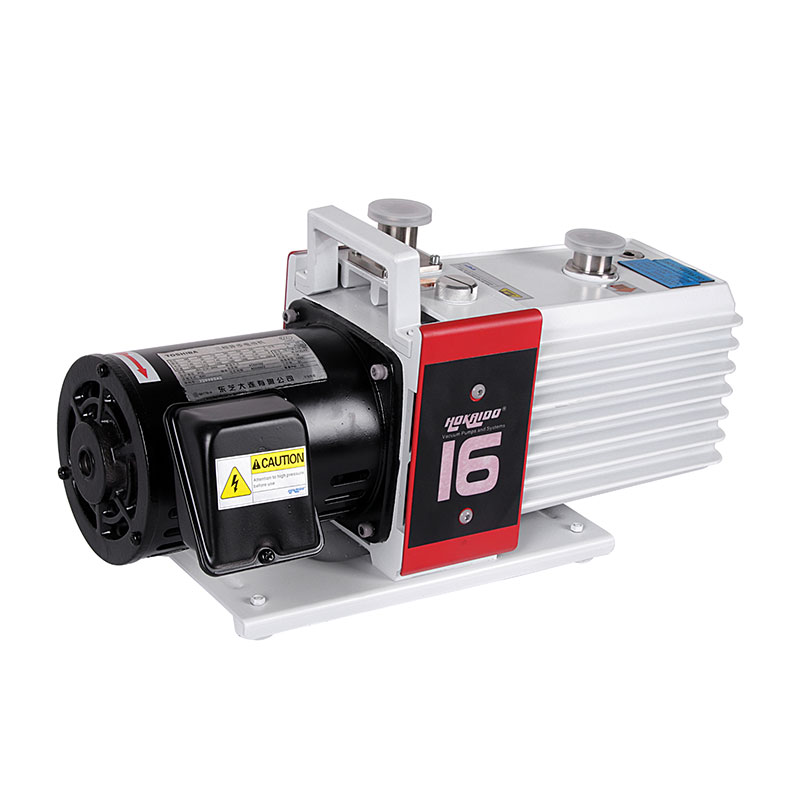

Hokaido 2RH016C Double-stage Rotary Vane Vacuum Pump (0.55 Kw, 14.4 m³/h (50Hz), 17.4 m³/h (60Hz), 5.0x10-3 mbar)

Pumping Speed:

(50Hz): 14.4m3/h

(60Hz): 17.4m3/h

Ultimate Pressure w/o gas ballet: 7.0x10-4 mbar

Ultimate total Pressure w/o gas ballet: 5.0x10-3 mbar

Ultimate Pressure w/gas ballet: 5.0x10-3 mbar

Water VaporΔP: 20 mbar

Inlet/Outlet Flange: KF25"

Voltage:

(50Hz): 220-240/380-415v

(60Hz): 220-280/380-440v

Nominal motor rating: 0.55 Kw

Current:

(50Hz): 2.40/1.45A

(60Hz): 2.88/1.74A

Motor speed:

(50Hz): 1400/1420

(60Hz): 1680/1710

Noise: 64 dB(A)

Oil (min/max): 1.2L

Weight(w/o oil): 27Kg
