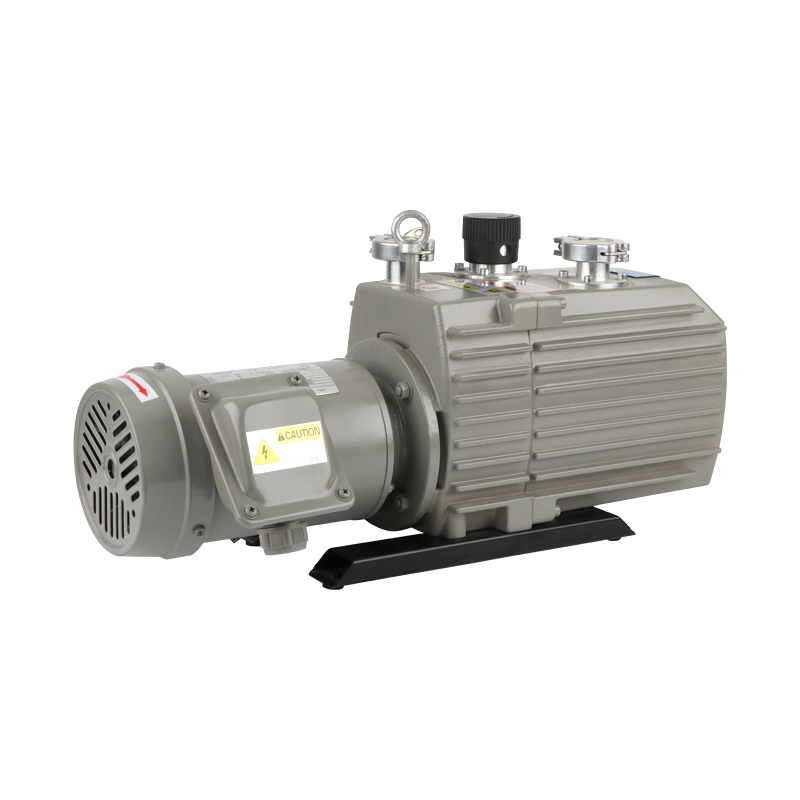

Hokaido 2RH008D Double-stage Oil-lubricated rotary vane vacuum pump (0.5 Kw, 8 m³/h (50 Hz), 9.6 m³/h (60 Hz), 3.0x10-3 mbar)

Pumping Speed:

(50Hz): 8m3/h

(60Hz): 9.6m3/h

Ultimate Pressure w/o gas ballet: 4.0x10^-4 mbar

Ultimate total Pressure w/o gas ballet: 3.0x10^-3 mbar

Ultimate Pressure w/gas ballet: 6.0x10^-3 mbar

Water VaporΔP: 30 mbar

Inlet/Outlet Flange: KF25"

Voltage:

(50Hz): 220/380v

(60Hz): 220/380v

Nominal motor rating: 0.5 Kw

Current:

(50Hz): 9.57/5.40A

(60Hz): 11.5/6.48A

Motor speed:

(50Hz): 1440

(60Hz): 1720

Noise: 54/56 dB(A)

Oil (min/max): 0.7/1.0L

Weight(w/o oil): 27Kg

Datasheet
