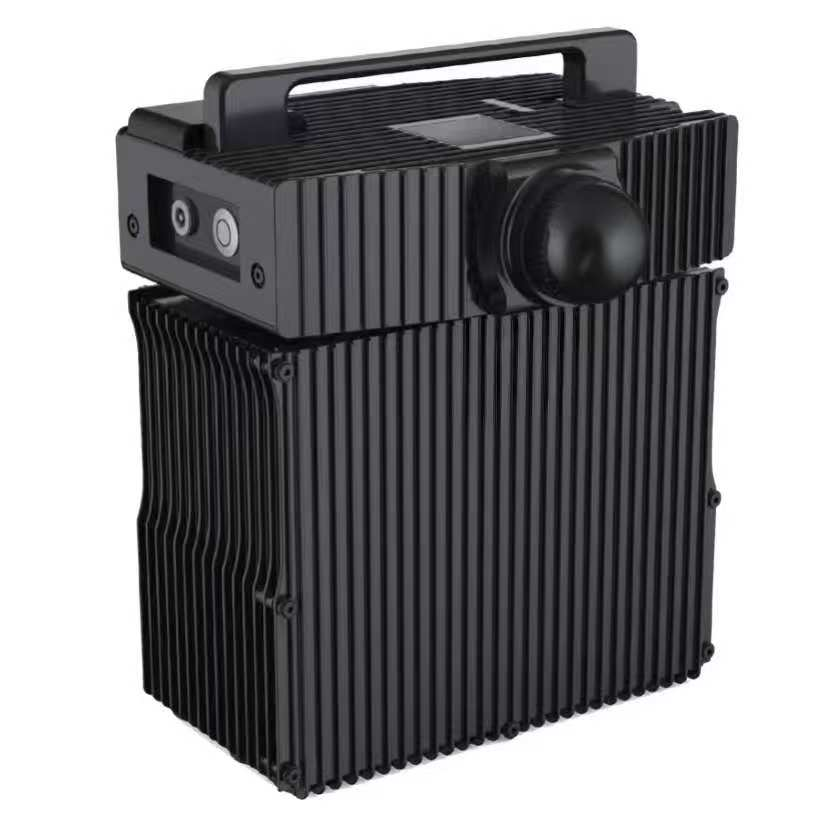

Hokada LY0001A CdZnTe Compton Camera (60 keV – 3 MeV)

Energy Resolution: ≤ 1.2% FWHM @ 662 keV

Energy Range (Spectrum): 60 keV – 3 MeV

Energy Range (Imaging): 250 keV – 3 MeV

Camera FOV (Horizontal): 360°

Camera FOV (Vertical): 360°

Radiation Imaging FOV: 360°

Angular Accuracy: ≤ ±1°

Localization Time: ≤ 3 min for 1 μGy/h Cs-137 at 1 m

Tracking Rate: ≥ 1 fps (360° panorama)

Nuclide ID: Am-241, Ba-133, Cs-137, I-131, etc.

GPS: Integrated for outdoor positioning

Data Display: Wireless to laptop

Operating Temperature: -20 °C – +50 °C

Operating Humidity: < 95%

Storage Temperature: -20 °C – +50 °C

Storage Humidity: < 95%

Battery Life: ≥ 8 h

Portable gamma camera with test device and tablet

Real-time source information

Optical camera: two 220° fisheye cameras for ~360° view

Radioactive nuclide spatial distribution overlaid on fisheye image
