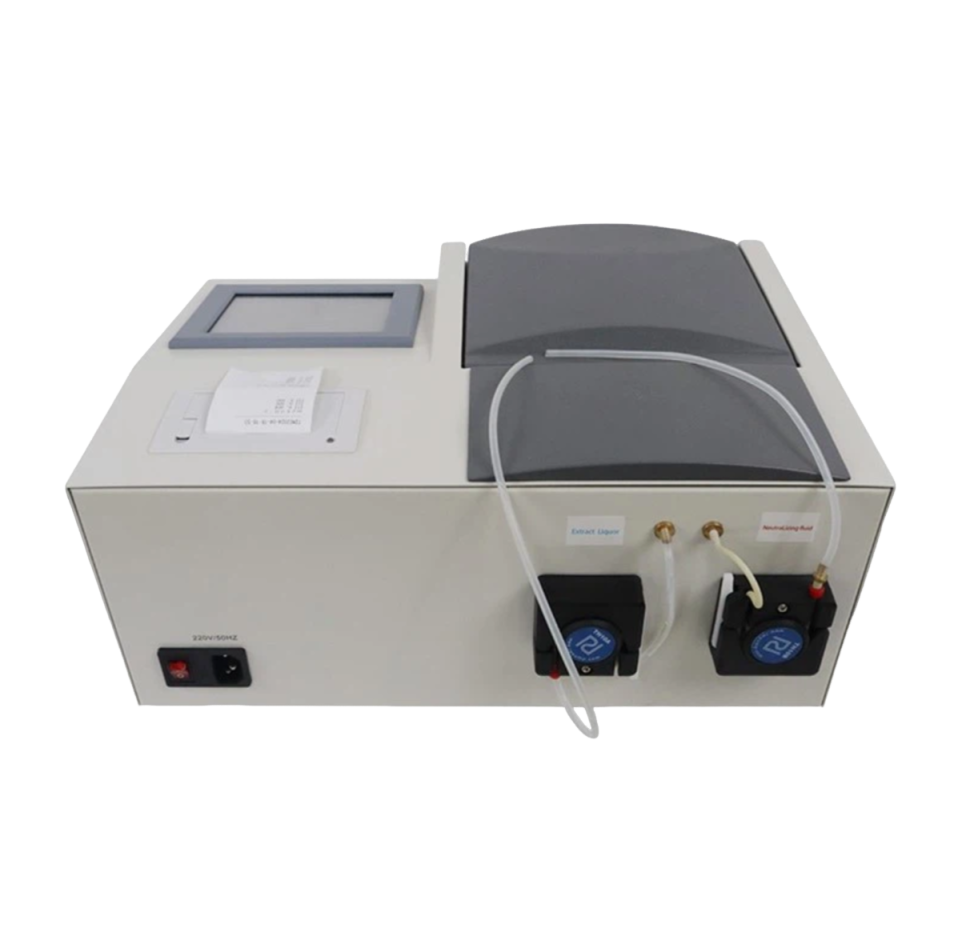

HMDQ HM703 Automatic Oleic Acid Tester (0.001 ~ 0.900 mgKOH/g)

The linear range: 0.001 ~ 0.900 mgKOH/g;

The correlation coefficients: 0.999 ~ 0.9998

Return to charge rate: 98 ~ 103%

The minimum resolution: 0.001 mgKOH/g

Repetitive: 2 ~ 5% (RSD)

Measurement accuracy:

Acid value between 0.001 ~ 0.100 mgKOH/g is plus or minus 0.003 mgKOH/g

Acid value in 0. 100 ~ 0.900 mgKOH/g is in value between 2 ~ 5%

Display: large screen touch color LCD screen to Chinese characters display (full)

0 ~ 40 ℃ ambient temperature

The relative humidity of 85% or less

Work power AC 220 v + / - 10%(can be customized)

Power frequency: 50 + 5 Hz(can be customized)

Power consumption: < 150 W
