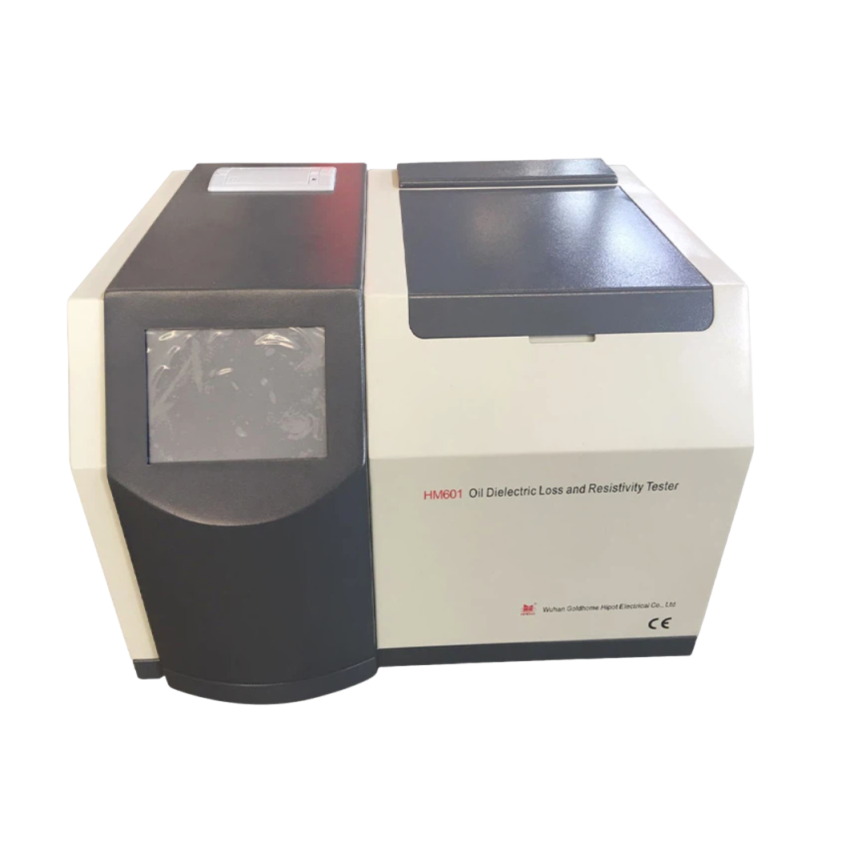

HMDQ HM601 Oil Dielectric Loss And Resistivity Tester (5pF～200pF, AC 220V±10%)

1. The power supply voltage： AC 220V±10%

2. Power frequency： 50Hz/60Hz ±1%

3. Measuring range：

-Capacitance: 5pF～200pF

-The relative permittivity: 1.000～30.000

-Dielectric loss factor: 0.00001～100

-The dc resistivity 2.5: MΩm～20 TΩm

4. Accuracy of measurement：

-Capacitance: ±(1%reading+0.5pF)

-The relative permittivity: ±1%reading

-Dielectric loss factor: ±(1%reading+0.0001)

-The dc resistivity: ±10%reading

5. Points and distinguishing rate：

-Capacitance: 0.01pF

-The relative permittivity: 0.001

-Dielectric loss factor: 0.00001

6. Temperature measurement range： 40～120℃

7. Temperature measurement error： ±0.5℃

8. The ac voltage： 200～2200V Continuous adjustable, frequency 50 hz

9. The dc test voltage： 0～500V Continuous adjustable

10. Power consumption： 100W

11. The environment temperature： 0℃～40℃

12. Relative humidity： <75%
