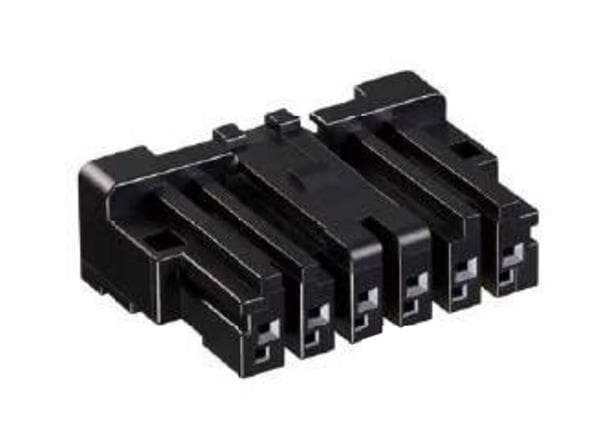

Hirose Electric ZG05HV-6S-HU Wire Housings Plug Housing, 6pos., High-Voltage WiretoBoard Connector: Size: 0.5, Pitch: 3.3mm
ManufacturerHirose Electric(View more products from this manufacturer)
ModelZG05HV-6S-HU
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 3.3 mm (0.13 in)
Width: 15.95 mm
Gender: Plug
Height: 7.55 mm
Length: 23.2 mm
Dimensions: 23.2 mm x 15.95 mm x 7.55 mm
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 1 Row
Voltage Rating: 1 kVAC/VDC
Housing Material: Polyamide (PA)
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
Operating Temperature Range: - 40 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
