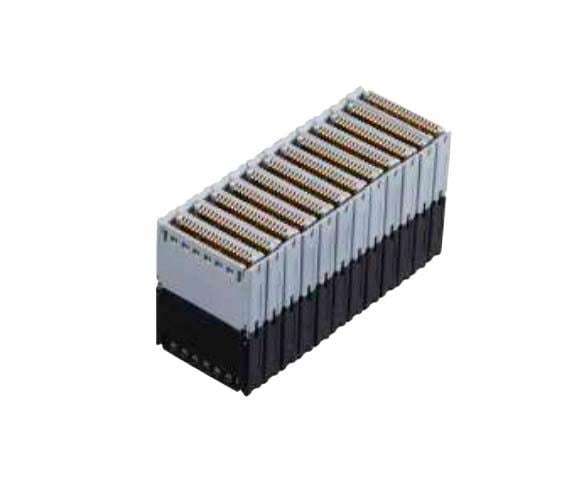

Hirose Electric IT8-120S-28H Interposers 120 position interposer for 28mm height
ManufacturerHirose Electric(View more products from this manufacturer)
ModelIT8-120S-28H
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Stack Height: 28 mm
Current Rating: 500 mA
Mounting Angle: Straight
Mounting Style: PCB Mount
Voltage Rating: 50 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Polyphenylene Sulfide (PPS)
Maximum Data Rate: 56 Gb/s
Termination Style: Solder Balls
Flammability Rating: UL94V-0
Number of Positions: 120 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
