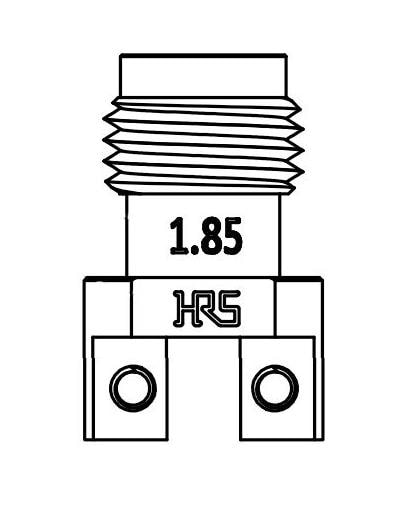

Hirose Electric HV-LR-SR2 PCB Receptacles Receptacle
ManufacturerHirose Electric(View more products from this manufacturer)
ModelHV-LR-SR2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: 1.85 mm
Body Style: Straight
Orientation: Right Angle
Unit Weight: 2.260 g
Mating Cycles: 500 Cycles
Mounting Style: Edge Launch
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 65 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
