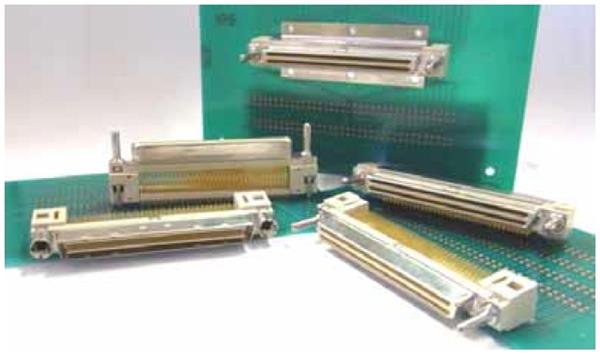

Hirose Electric EX10E-280S Docking Connectors 280P RCP DEVICE SIDE R/A 0.8MM PITCH
Color: Beige
Pitch: 0.8 mm
Gender: Female
Features: Enhanced grounding structure, high pin count, small size, light weight
Current Rating: 500 mA
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 250 VAC
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Number of Positions: 280 Position
Insulation Resistance: 250 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
