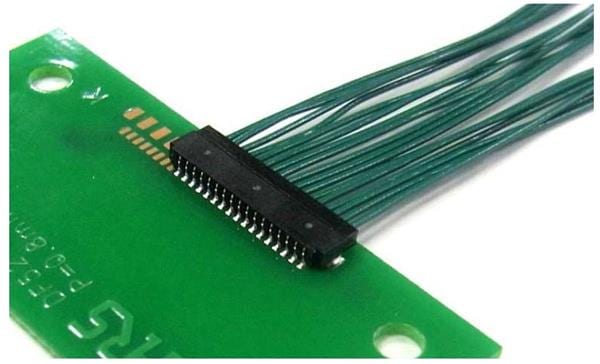

Hirose Electric DF52-16P-0.8C Plug Plug 16P Straight 0.8mm Pitch
ManufacturerHirose Electric(View more products from this manufacturer)
ModelDF52-16P-0.8C
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.8 mm (0.031 in)
Unit Weight: 42 mg
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 1.2 A
Housing Gender: Plug
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 100 VAC/DC
Housing Material: Polyamide (PA)
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 16 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
