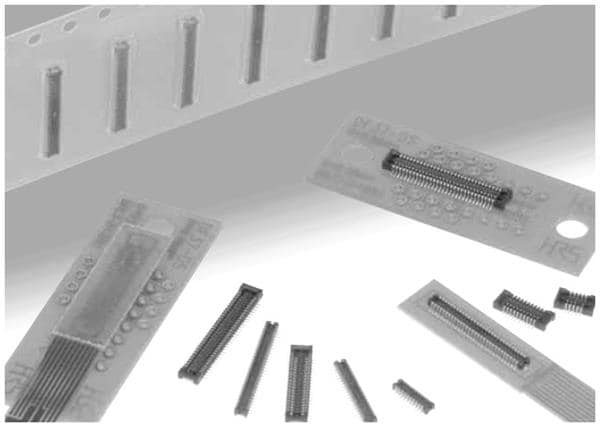

Hirose Electric DF37CJ-30DS-0.4V(53) Receptacles 30P RCEP SMT VRT MNT W/O MTL FIT NO BOSS
ManufacturerHirose Electric(View more products from this manufacturer)
ModelDF37CJ-30DS-0.4V(53)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.4 mm (0.016 in)
Current Rating: 300 mA
Mounting Angle: Vertical
Number of Rows: 2 Row
Voltage Rating: 30 V
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Positions: 30 Position
Insulation Resistance: 50 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 35 C
