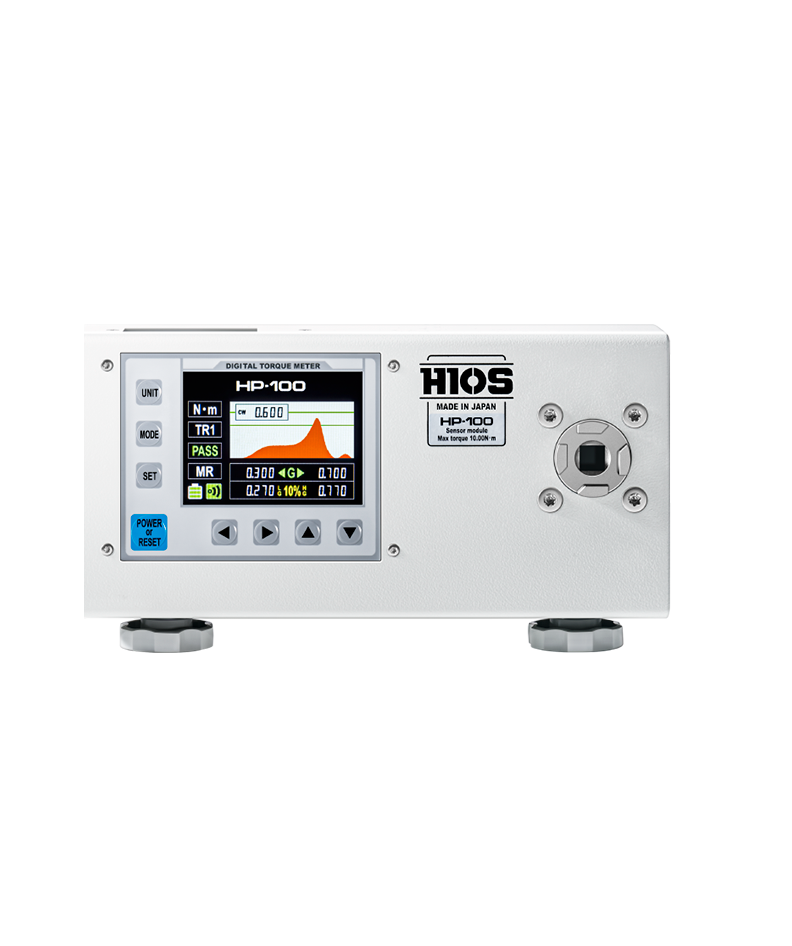

HIOS HP-100X Digital Torque Meter (0.15-10.00 N・m, 1/4 Hex Drive)

Interface: Bluetooth (Standard), RS-232 (Optional)

Meas.range:

N・m: 0.15-10.00

N・cm: 15-1000

lbf・in: 1.5-90.0

kgf・cm: 1.5-100.0

Measuring unit: N・m⇔kgf・

Min. display unit: 10digit

Meas. mode: PEAK, TR1 (torque waveform), TR2 (continuous torque waveform)

Meas. direction: Right-hand screw, left-hand screw

Meas. accuracy: Within ±0.5% (F.S.)

Charging and scalability:

Supports the following with a micro USB Type-B port: Charging, Data transfer (USB 2.0: up to 480Mb/s)

Battery&Power:

Input: AC100-240V 50/60Hz 0.4A

Output: DC5V 2A 10W

All models are equipped with 1000 mA Ni-MH battery 3.6 V (operating voltage 3.3 V), maximum 300 mA when the power is ON

Torque meas & data transmission: Up to 2.5 hours, Charging via power adapter or PC via USB port

Charging time: 5 hours

Charge cycles: 500

Power consumption: Max. 1.5 W or less

Size (W x D x H): 230 x 110 x 50 mm (excluding the largest protrusion)

Weight: 1.94kg
