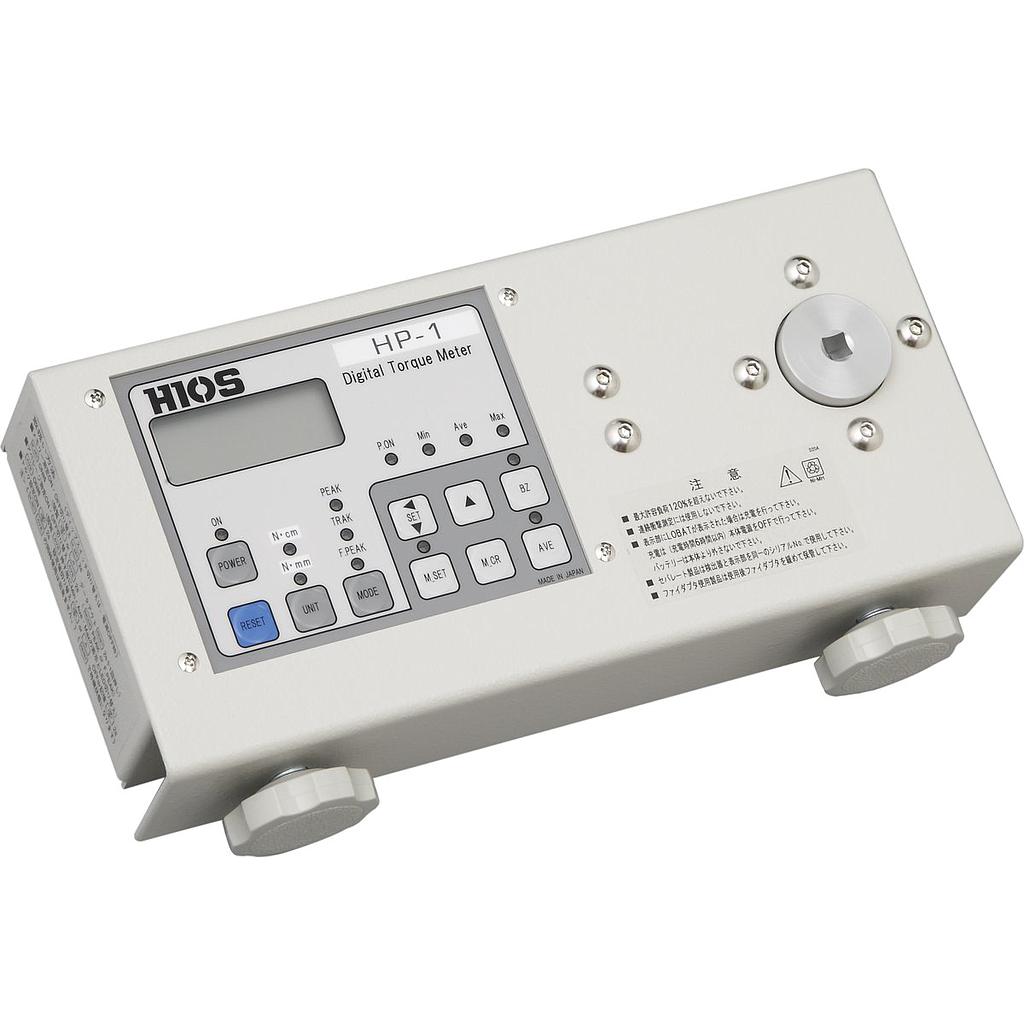

HIOS HP-1 Torque Meter

Peak mesuring range lbf・in: 0.015-0.9

Accuracy: Within ±0.5% (F.S.)

Measuring models: TRACK, PEAK, FIRST PEAK

External Dimensions(mm): 230 ×124 ×65.2 (H)

Weight(g): 1.8kg

Charging time: 1.2V NiMH x 5 cells 1,000mA (within 6 hours)

Continuous operating time ona full charge: 8 hours

Battery life: About 300 charges

Exclusive battery charger: Input：AC 100-240V （50 / 60Hz）

Output：DC 7.3-8V 0.5 A

Manual

Feature

Use for making torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.

● Measured data can be imported to a computer.

● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).

● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).

● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.

● Torque for both clockwise or counterclockwise can be measured.

● As a standard specification, data output and analogue output are available.

● We offer calibration and maintenance services.

● “Inspection Report” is attached to all the Torque Meters.
