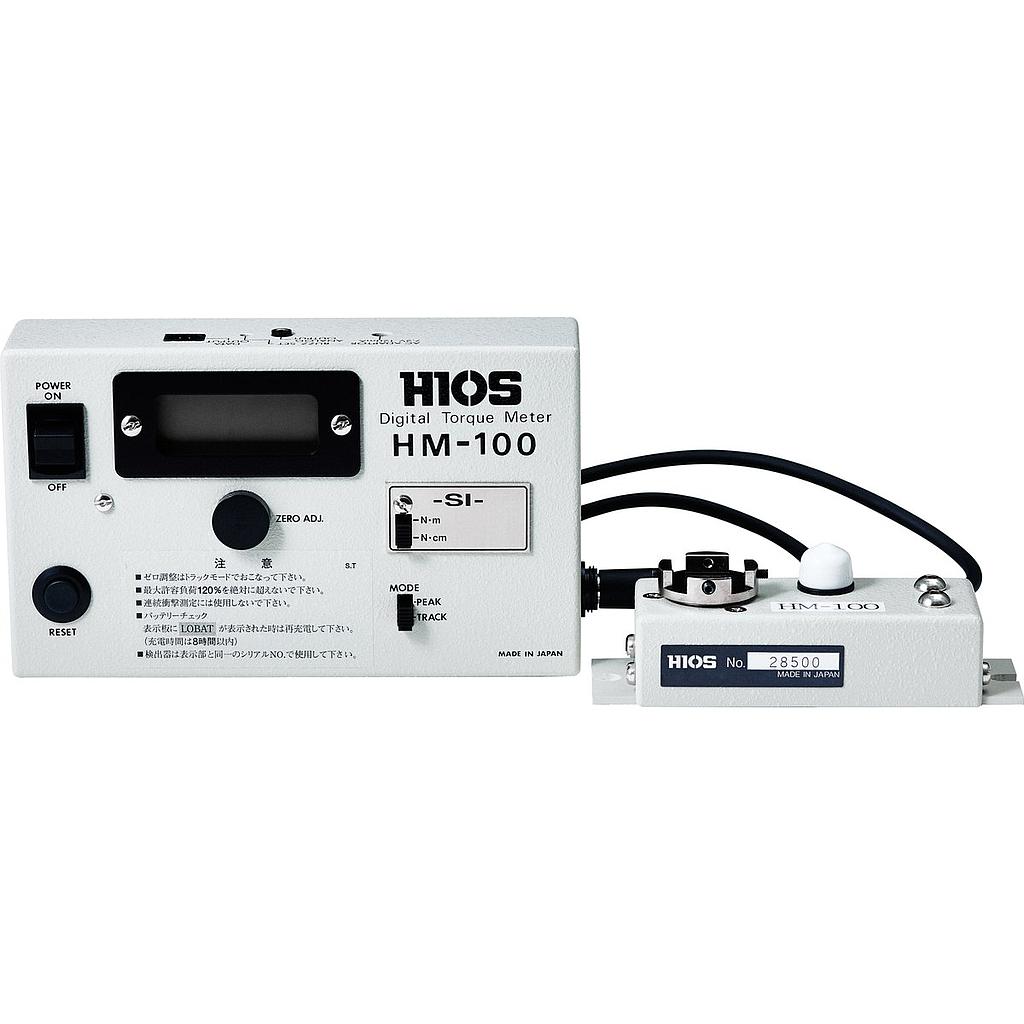

HIOS HM-100 Torque Meter

Peak mesuring range: (N・m) 0.15-10

(lbf・in) 15-1000

Accuracy: Within ±0.5% (F.S.)

Measuring models: TRACK, PEAK

External Dimensions(mm):

+ Display unit: 165 ×95 ×55 (H)

+ Detector: 119×45×33(H)

Weight(g):

+ Torque display: 1 kg

+ Detector: 0.35 kg

Detectorcord: 1.7m (P/N: DPC-0506)

Charging time: 6V NiMH (within 8 hours)

Continuous operating time ona full charge: 30 hours

Battery life: About 300 charges

Exclusive battery charger: Input： AC100V,120V,220-240V

Output：DC 7.2V 120mA

Manual

Feature

Use for torque control of screwdrivers for automatic assembly machines

● Measured data can be imported to a computer.

● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).

● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).

● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.

● Torque for both clockwise or counterclockwise can be measured.

● As a standard specificataon, data output and analogue output are available.

● We offer calibration and maintenance services.

● “Inspection Report” is attached to all the Torque Meters.
