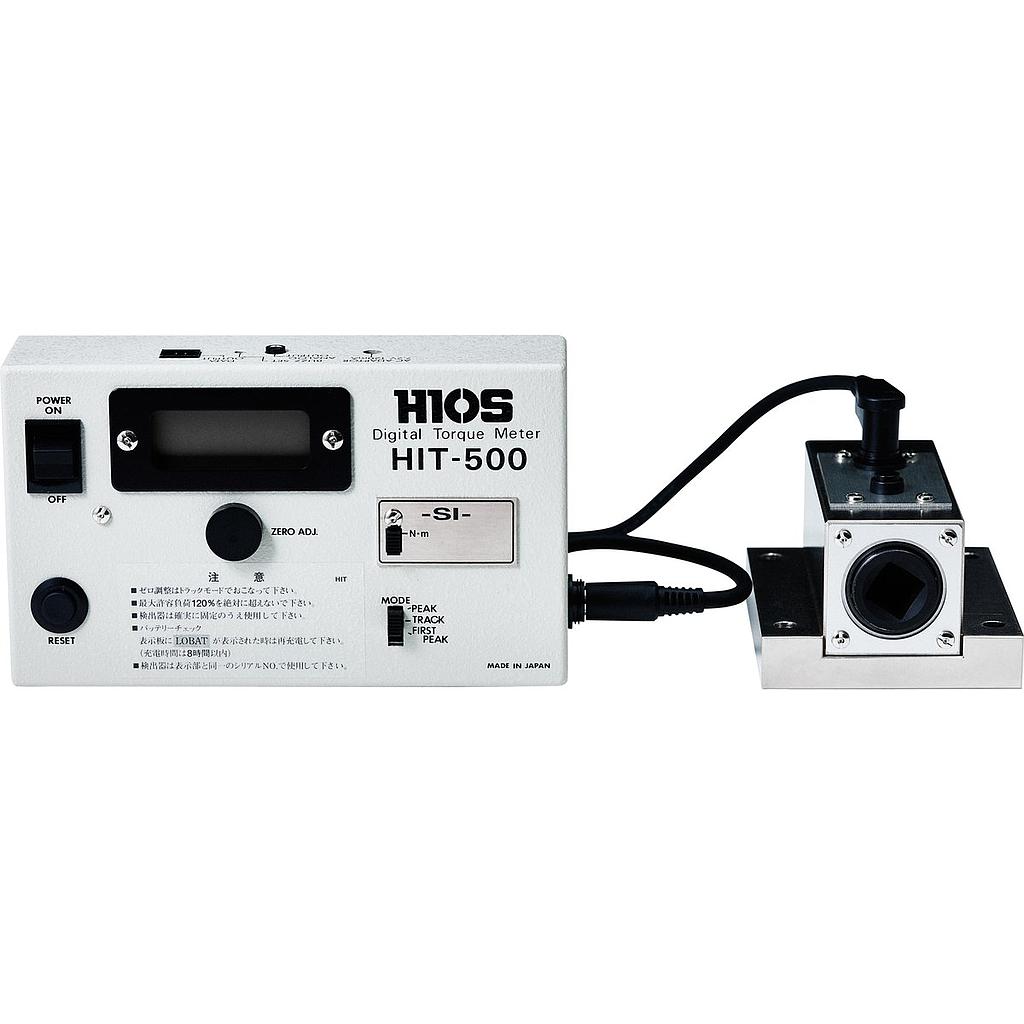

HIOS HIT-500 Torque Meter

Peak measuring range (N・m): 0.15-50

Accuracy: Within ±0.5% (F.S.)

Measuring models: TRACK, PEAK, FIRST PEAK

External Dimensions(mm): 165 ×95 ×55 (H)

Weight(g):

+ Torque display: 1 kg

+ Detector: 1.65 kg

Detector: Bit socket 28800000

Detectorcord: 1.7m (P/N: DPC-0506)

Charging time: 6V NiMH (within 8 hours)

Continuous operating time ona full charge: 30 hours

Battery life: About 300 charges

Exclusive battery charger: Input： AC 100V,120V,220-240V

Output：DC 7.2V 120mA

Use for control of impact drives and torque wrenches

Manual
