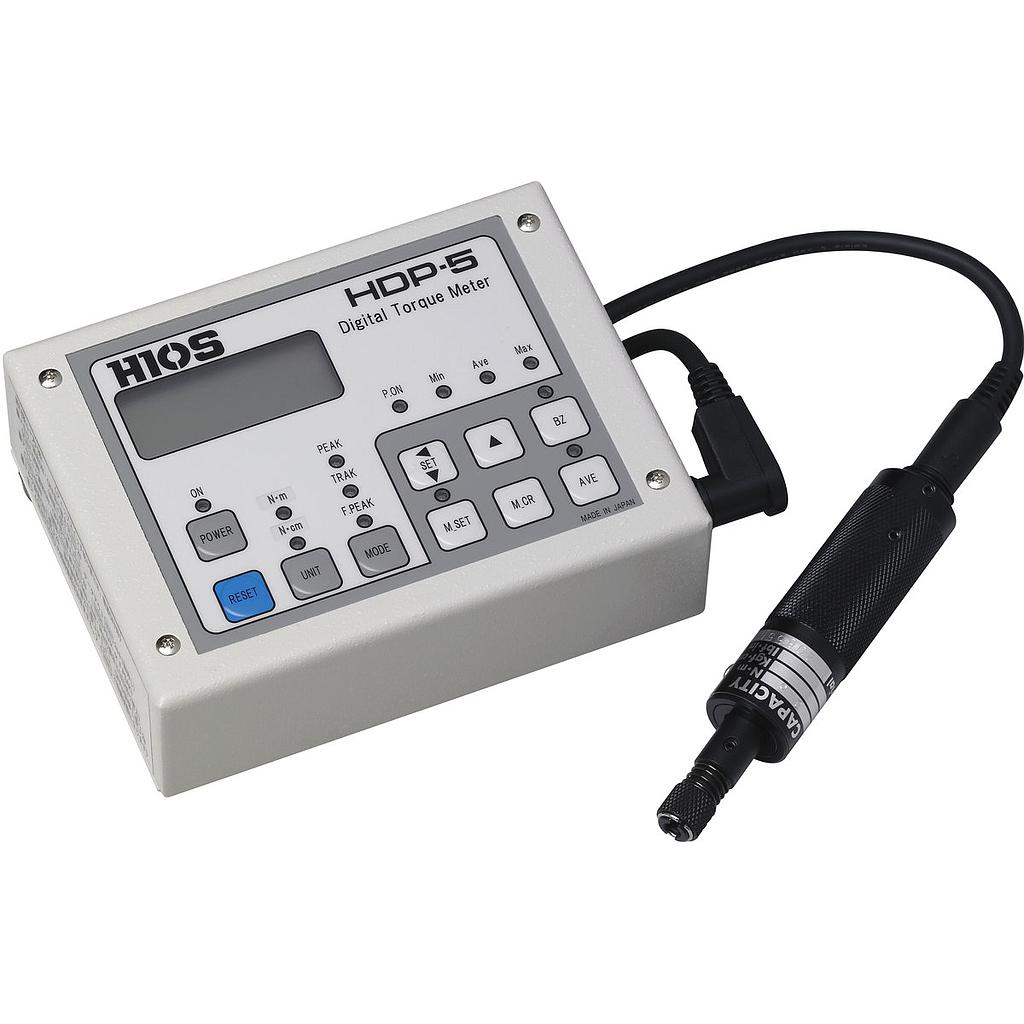

HIOS HDP-5 Torque Meter

Peak mesuring range: (N・m) 0.015-0.5

(lbf・in) 0.15-50

Accuracy: Within ±0.5% (F.S.)

Measuring models: TRACK, PEAK, FIRST PEAK

External Dimensions(mm):

+ Display unit: 125 ×95.6 ×42 (H)

+ Detector: 104(L)×∅21

Weight(g):

+ Torque display: 0.78 kg

+ Detector: 0.068kg

Detector: Bit socket H4 or 1/4HEX

Detectorcord: 1.7m (P/N: DPC-0506)

Charging time: 1.2V NiMH x 5 cells 1,000mA (within 6 hours)

Continuous operating time ona full charge: 8 hours

Battery life: About 300 charges

Exclusive battery charger: Input：AC 100-240V （50 / 60Hz）

Output：DC 7.3-8V 0.5 A

Manual

Feature

Use for measuring loosened torque of tightened screws or additional tightening torque.

● Measured data can be imported to a computer.

● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).

● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).

● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.

● Torque for both clockwise or counterclockwise can be measured.

● As a standard specificataon, data output and analogue output are available.

● We offer calibration and maintenance services.

● “Inspection Report” is attached to all the Torque Meters.
