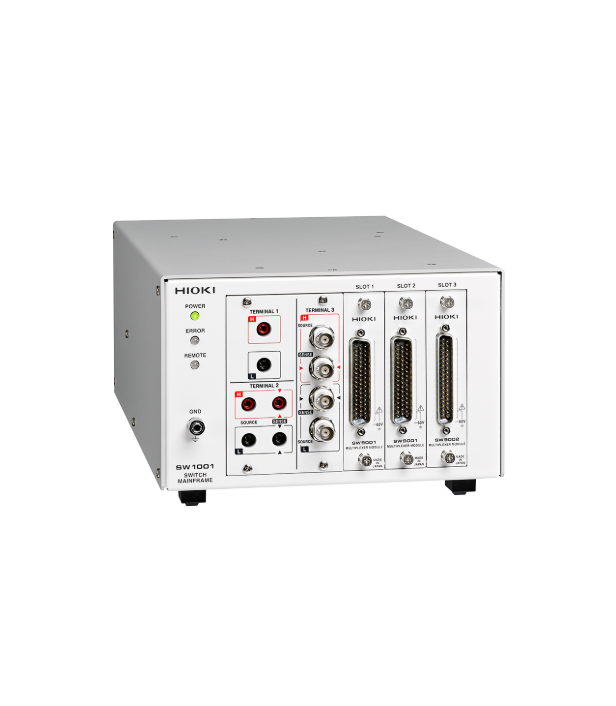

HIOKI SW1001 Switch Mainframe

Slots: 3 slots

Supported modules:

MULTIPLEXER MODULE SW9001 (2-wire/4-wire)

MULTIPLEXER MODULE SW9002 (4-terminal pair)

Connectible instruments:

Max. 2 units

2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1

Max. input voltage: 60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC

Communication I/F: LAN, USB, RS-232C (for host, for measurement instruments)

Functions: Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching

Power supply: 100 to 240 V AC / 30 VA (50/60 Hz)

Dimensions and mass: 215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz)

Included accessories: Power cord ×1, instruction manual ×1, usage precautions ×1
