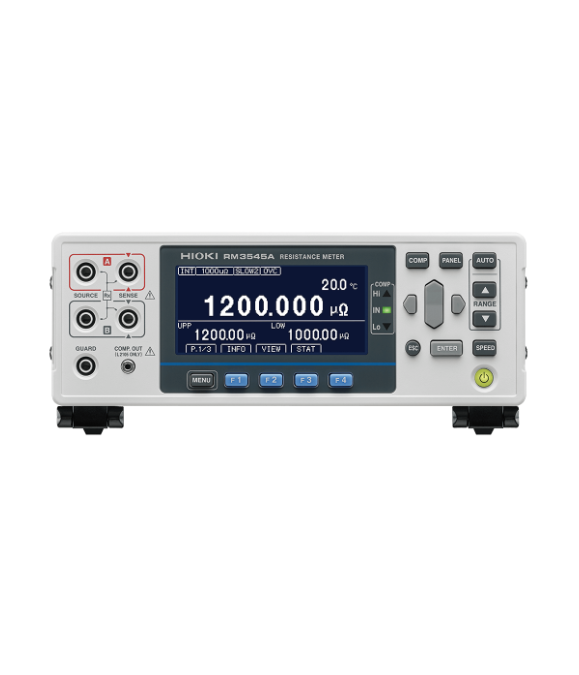

HIOKI RM3545A-2 Resistance Meter (0.000 µΩ ~1200.0 MΩ)

Maximum allowable voltage: −

Minimum measurement range: 1000 µΩ

Maximum resolution: 1 nΩ

Measurement range: 0.000 µΩ (1000 µΩ range) to 1200.0 MΩ (1000 MΩ range), 13 ranges

Measurement current:

1 A

100 mA, 10 mA, 1 mA, 500 µA, 100 µA, 50 µA, 10 µA, 5 µA, 1 µA, 1 µA or less, 100 nA

Offset voltage compensation: OVC

Temperature correction: TC

Pure resistance mode (PR): 1000 µΩ, 10 mΩ, 100 mΩ ranges

Low-power mode (LP): 1000 mΩ, 10 Ω, 100 Ω, 1000 Ω ranges

Interface: USB, RS-232C, LAN

Fuse: F1.6AH/250 V (replaceable)

Dimensions: Approx. 215W × 80H × 306.5D mm (8.46W × 3.15H × 12.07D in.)

Weight: Approx. 3.4 kg (7.5 lb.)

General Specifications

Operating environmen: Indoor use, pollution degree 2, altitude up to 2000 m (6562 ft.)

Operating temperature and humidity range: 0°C to 40°C (32°F to 104°F), 80% RH or less (non condensing)

Storage temperature and humidity range: −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing)

Power supply

Rated supply voltage: Commercial power supply 100 V to 240 V AC (Voltage fluctuations of ±10% from the rated supply voltage are taken into account)

Rated power-supply frequency: 50 Hz/60 Hz

Anticipated transient overvoltage: 2500 V

Maximum rated power: 40 VA

Normal power consumption (reference value): 16 W (measurement current 1 A, LCD on)

Backup battery life: Approx. 10 years (reference value at 23°C)

Fuse: F1.6AH 250 V (installed inside the main body, replaceable)
