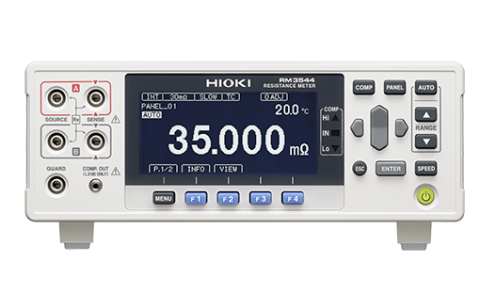

HIOKI RM3544-01 Resistance meter

Specifications
- Resistance range:
+ 30mΩ(max 35mΩ/resolution 1μΩ)
+ 3MΩ (max 3.5MΩ/resolution 100Ω)
- Accuracy: ±0.020 % rdg. ±0.007 % f.s.
- Testing current:
+ With range 30mΩ: 300mA DC
+ With range 3MΩ: 500nA DC
- Open-teminal voltage: 5.5V DC max
- Temperature measurement:
+ -10.0 to 99.9°C
+ Accuracy: ±0.50°C
+ Temperature Z2001
- Measurement:
+ Fast: 50Hz: 21ms, 60Hz: 18ms
+ Medium: 101ms
+ Slow: 401ms
- Function:
+ Temperature correction, comparator(ABS/REF%)
+ Display digit count selection function 4 digits, 5 digits
+ Auto hold, avẻaging
- Communication interface:
+ RS-232C, printer (RS232C), USB
+ Communication monitor function, output data function
- Power supply:
+ 100 to 240 V AC, 50/60 Hz
+ rate power consumption: 15VA
- Dimensions: 215x80x166mm
- mass: 1kg
- Supplied Accessories:
+ Power cord x1, Clip type lead L2101 ×1,Male EXT I/O connector ×1
+ Intruction manual, Application disc x1, Cable USB x1, fulse x1
- The warranty period: 12 month

Datasheet
