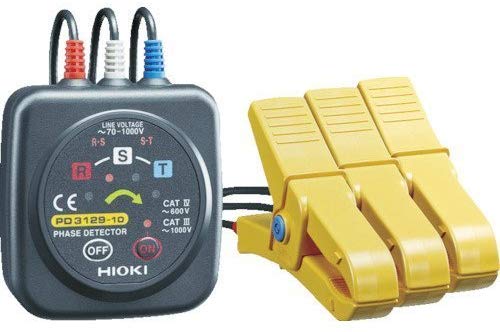

HIOKI PD3129-10 PHASE DETECTOR (70-1000 V AC (50/60 Hz))

Functions: Phase detection (positive and negative)
Voltage detection method: Static induction
Voltage range: 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input)
Frequency range: 45 Hz to 66 Hz
Object to be connected: 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring
Display Phase detection :
- Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
- Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function: Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off: Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply: R6P (AA) manganese battery ×2, Continuous use: 70 hr
Dimensions and mass: 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 240 g (8.5 oz), Cord length : 0.7 m (2.30 ft)
Accessories: Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2
