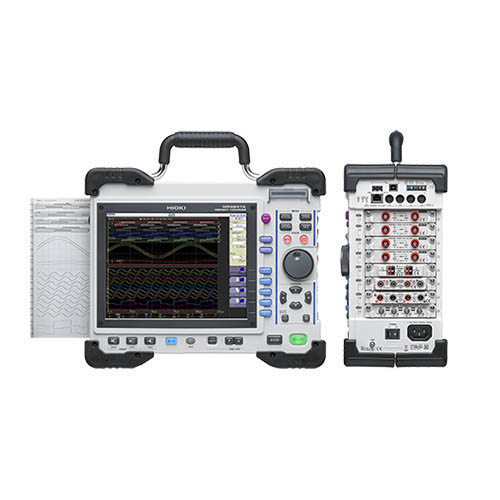

Hioki MR8847-01 MEMORY HiCORDER

Specification
- Number of channels:
+ 16 analog channels [8 analog input modules]
+ 16 logic channels [8 analog input modules]
+ 10 analog channels [5 analog input modules + 3 logic input modules]
+ 64 logic channels [5 analog input modules + 3 logic input modules]
- Measurement ranges:
+ 5mV to 20V/div, 12ranges, resolution : 1/100 of range
+ 5mV to 20V/div, 12ranges, resolution : 1/1600 of range
- Max. allowable input: 400 V DC
- Frequency characteristics: DC to 5 MHz / DC to 100 kHz
- Time axis: 5μs to 5min/div, 26ranges,at 100 points/div
- Measurement functions: MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT
- Memory capacity: : 32M-Words/ch (using 2 Analog channels) to 4M-Words/ch (using 16 Analog channels), Total capacity 64MW memory
- Data storage media: USB memory, CF Card slot × 1 (Up to 2 GB), Hard disk drive (option, 80GB)
- Printing: 216×30m, thermal paper roll , recoding 50mm/s
- Display: 10.4 inch TFT color LCD (SVGA, 800×600 dots)
- Displayable languages: English, Japanese, Korean, Chinese
- External interfaces: LAN, USB
- Power supply:
+ 100 tới 240V AC, 50/60Hz (130VA max.,when using printer: 220VA max.)
+ 10 tới 28V DC
- Dimensions, mass: 351mm (13.82in) W × 261mm (10.28in) H × 140mm (5.51in) D, 7.6kg
- Supplied accessories: Instruction Manual×1, Measurement Guide×1, Application Disk (Wave Viewer Wv, Communication Commands table)×1, Power cord×1, Input cord label×1, USB cable×1, Printer paper×1, Roll paper attachment×2
- The warranty period: 12 month
