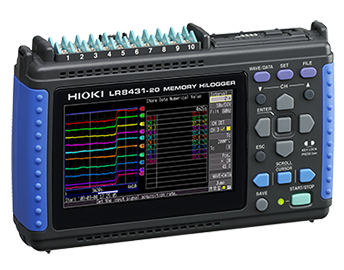

HIOKI LR8431-20 HiLOGGER
ManufacturerHIOKI(View more products from this manufacturer)
ModelLR8431-20
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
SPECIFICATIONS
- Number of channels:
+ Analog: 10 isolated channels using scanning input method
+ Pulse: 4 channels (All pulse inputs share common ground with the main unit)
- Measurement parameters:
+ Voltage : ±100 mV to ±60 V, 1-5V f.s. 6 ranges/Max. resolution 5μV
+ Temperature (thermocouples) : −200°C to 2000°C/resolution 0.1°C
+ Temperature (Pt 100 sensor)
+ Totalized pulses : 0 to 1000M count, 1 range
+ Rotation count : 0 to 5000/n (r/s) f.s. 1 range/Resolution 1/n (r/s)
- Max. allowable input: DC 60 V (Analog input), DC -5 V to 10 V (Pulse input)
- Recording intervals: 10 ms to 1 hour, 19 selections
- Selectable Filters: 50 Hz, 60 Hz, or OFF
- Memory capacity: 3.5 MWords
- External Interface:
+ USB 2.0 mini-B receptacle ×1; Functions: Control from a PC
+ Transfers files from the installed CF card to a PC
+ Data copy between CF card and USB memory stick
- Display: 4.3-inch WQVGA-TFT color LCD (480 × 272 dots)
- Functions:
+ Save data to the CF Card or USB memory stick in real time
+ Numerical Calculations, etc
- Power supply:
+ AC ADAPTER Z1005: 100 to 240 VAC (50/60 Hz)
+ BATTERY PACK 9780: Continuous use 2.5 hours
+ 12 V DC supply: 10 to 16 V
- Product Net Weight:550g
- Product Size: 176*101*41mm
- Supplied accessories:
+ Measurement Guide ×1, CD-R (Instruction Manual PDF)
+ Logger Utility Instruction Manual PDF
+ Data acquisition application program Logger Utility) ×1
+ USB cable ×1, AC adapter Z1005 ×1
- The warranty period: 12 month
