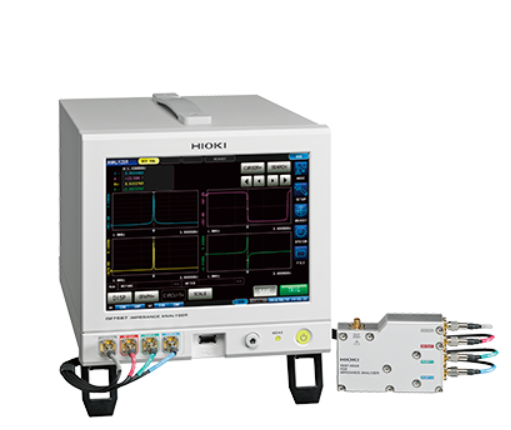

HIOKI IM7587-01 Impedance analyzer

Measurement modes: LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode

Measurement parameters: Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q

Measurable range: 100 mΩ to 5 kΩ

Display range: Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)

Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)

θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)

D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)

G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)

Basic accuracy: Z: ±0.65 % rdg. θ: ±0.38°

Measurement frequency: 1 MHz to 3 GHz (100 kHz setting resolution)

Measurement signal level: Power: -40.0 dBm to +1.0 dBm

Voltage: 4 mV to 502 mVrms

Current: 0.09 mA to 10.04 mArms

Output impedance50 Ω (at 10 MHz)

Display: 8.4-inch color TFT with touch screen

Measurement speeds: FAST: 0.5 ms (Analog measurement time, typical value)

Functions: Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation

Interfaces: EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)

Power supply: 100 to 240 V AC, 50/60 Hz, 70 VA max.

Dimensions and mass: Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz)

Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)

Accessories: Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1
