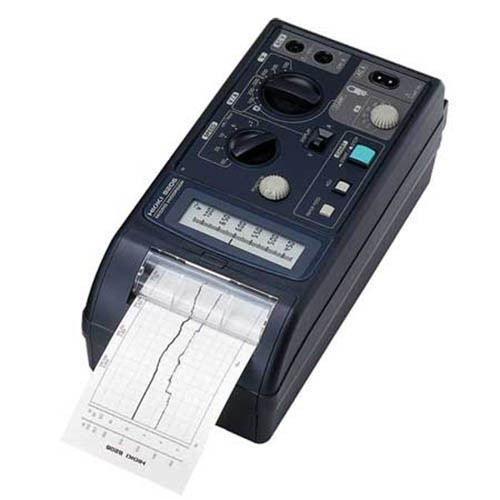

Hioki 8206-10 MEMORY Hioki HiCORDER 8206-10

Specification
- Measurement ranges:
+ Voltage AC: 100/200/500 V f.s. 3 ranges
+ Current AC: 10A tới 100A AC 4 ranges
+ 10 A tới 500 A AC 6 ranges
+ 10 A tới 1000 A AC 7 ranges
- Sampling period: 10ms
- Frequency characteristic:
+ AC/DC voltage range: +0.5 dB to -3 dB from 20 Hz to 30 kHz.
+ AC current range: Frequency characteristic is determind by the clamp sensor.
- Paper feed speed: 60 cm/minute to 2 cm/hour, 5 ranges
- Number of input channels: 1 channel AC or DC voltage, or 1 channel AC current
- Accuracy:
+ Voltage: ±2 % f.s. (ACV/45 Hz to 66 Hz)
+ Current: ±3.53 % f.s.
- Power supply:
+ 100 to 240 V AC (50/60 Hz)
+ 9.5 to 14 V DC
- Dimensions, mass: 250×122×93.5mm, 1.2 kg
- Supplied accessories: Recording paper 9235 (1 roll), roll paper holder (2), Power cord (1), CONNECTION CORD 9257 (1), CARRYING CASE 9344 (1)
- The warranty period: 12 month
