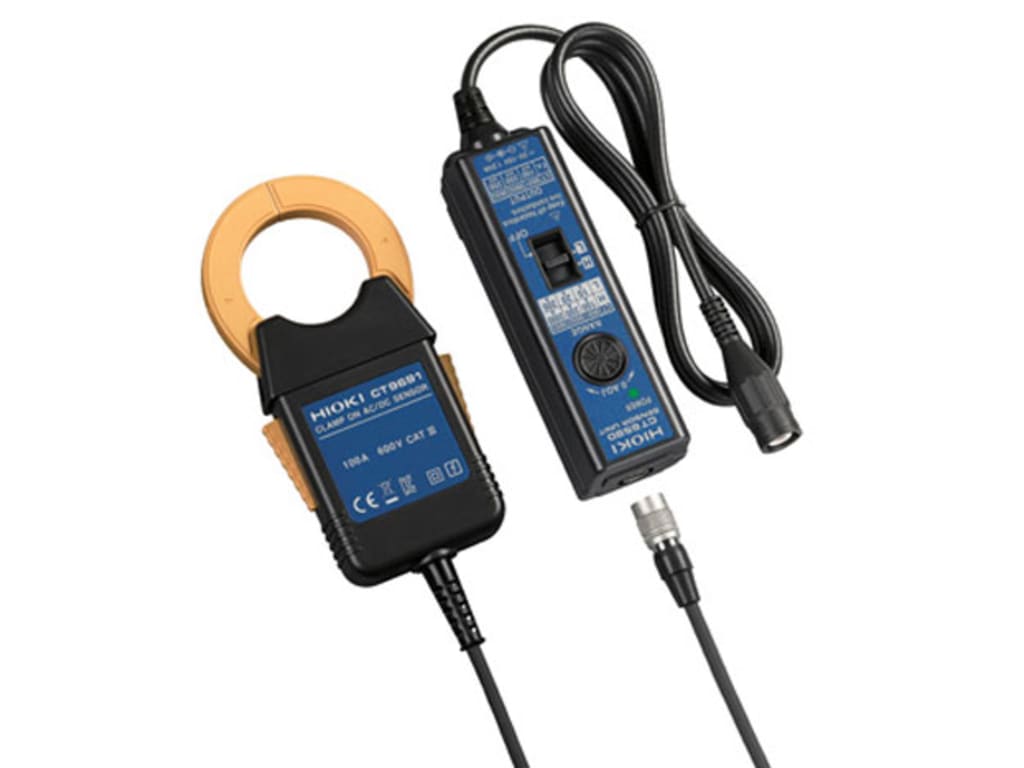

Hioki CT9691 AC/DC CURRENT SENSOR(100A)

- Rated input current: 100 A AC/DC
- Max. allowable input: Continuous 100 Arms
- Bandwidth: DC to 10 kHz (-3dB)
- Max. rated voltage to earth: 600 V AC/DC CAT III
- Power consumption: 50 mVA
- Core diameter: φ 35 mm (1.38 in)
- Dimensions and mass: 53 mm (2.09 in) W × 129 mm (5.08 in) H × 18 mm (0.71 in) D, 230 g (8.1 oz)
- Cord length: 2 m (6.56 ft)
- Accessories: Instruction manual ×1

- Rated input current:    100 A AC/DC
- Max. allowable input:    Continuous 100 Arms
- Bandwidth:    DC to 10 kHz (-3dB)
- Max. rated voltage to earth:    600 V AC/DC CAT III
- Power consumption:     50 mVA
- Core diameter:    φ 35 mm (1.38 in)
- Dimensions and mass:    53 mm (2.09 in) W × 129 mm (5.08 in) H × 18 mm (0.71 in) D, 230 g (8.1 oz)
- Cord length:    2 m (6.56 ft)
- Accessories:    Instruction manual ×1
