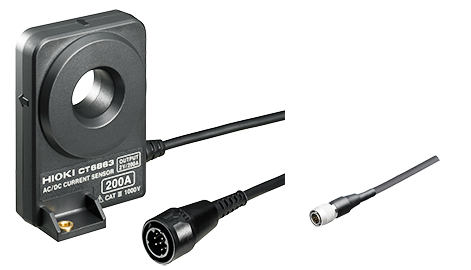

HIOKI CT6863-05 CURRENT SENSOR (200A)

- Rated input current: 200 A AC/DC
- Max. allowable input: 400 A AC/DC
- Frequency characteristics: Amplitude: DC to 500Hz
Phase: DC to 300Hz
- Amplitude and Phase accuracy: DC ±0.05 % rdg. ±0.01 % f.s. (Phase: Not defined) 16 Hz ≤ f ≤ 400 Hz ±0.05 % rdg. ±0.01 % f.s. (Phase: ±0.2°) Defined to 500 kHz
- Power consumption: 6 VA max.
(at 1000 A/55 Hz, ±12 V power requirement)
- Output voltage rate: 2 V /rated current value (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
Max. rated voltage to earth AC/DC 1000 V (50/60 Hz, CAT III )
Core diameter φ 24 mm (0,94 in)
- Operating temperature, humidity: -30°C to +85°C (-22°F to 185°F)
80% rh or less (with no condensation)
- Power supply: DC ±11 V to ±15 V (Power suppled via the 9555-10, which supports 100 to 240 V AC)
- Dimensions and mass: 70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, cord length: 3 m (9.84 ft), 350 g (12.3 oz)
- Accessories: Instruction manual ×1, Mark bands ×6
