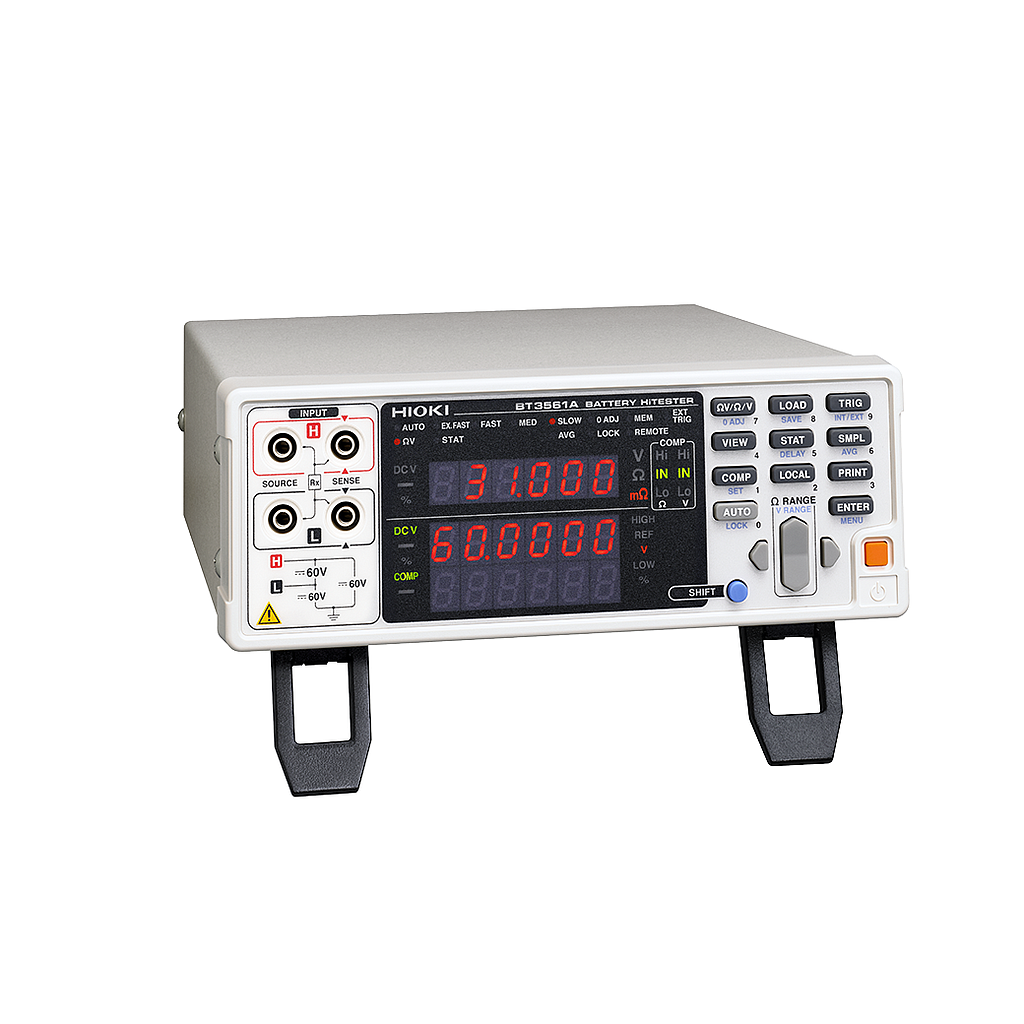

HIOKI BT3561A Baterry HiTester (30mΩ ~ 3kΩ; 6V ~ 60V)

Resistance measurement ranges: 30 mΩ ~ 3 kΩ

Basic accuracy: ±0.5% rdg ±5 dgt

Measurement frequency: 1 kHz ±0.2 Hz

Measurement method: AC four-terminal method

Voltage measurement ranges

6 V (Max. display: 6.00000 V, resolution: 10 μV)

60 V (Max. display: 60.0000 V, resolution: 100 μV)

Basic accuracy: ±0.01% rdg. ±3 dgt.

Response time: 10 ms

Sampling period

Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)

ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)

Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)

ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW)

Interfaces

LAN (TCP/IP, 10BASE-T/100BASE-TX)

RS-232C (Max. 38.4 kbps, Available as printer I/F)

EXT I/O (37-pin Handler interface)

Analog output (DC 0 V to 3.1 V)

Power supply: 100 to 240 V AC, 50 Hz/60 Hz, 35 VA max.

Dimensions and mass: 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
