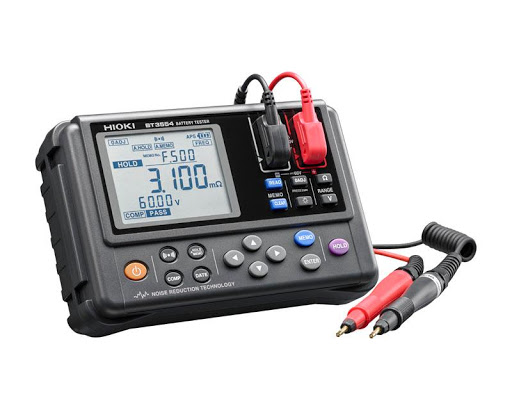

HIOKI BT3554-01 BATTERY TESTER (Bluetooth®, Pin Type Lead 9465-10)

Resistance measurement range: 3mΩ to 3Ω, 4 ranges
Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.)
Voltage measurement range: ± 6 V to ± 60 V, 2 ranges
Accuracy: ±0.08 % rdg. ±6 dgt.
Absolute max. input voltage: 60 V DC max. (No AC input)
Display update rate: Approx. 3 times/s
Data storage: Max. storable data: 6000 sets
Communication interface: Built in Bluetooth® 4.0 LE (Bluetooth® SMART), supports tablets and smart phones with iOS8 or Android™4.3 or later
Other functions: Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
Power supply: LR6 (AA) Alkaline dry battery ×8, Continuous operating time: 8.5 hr
Dimensions and mass:192 mm (7.56 in)W × 121 mm (4.76 in)H × 55 mm (2.17 in)D, 800 g (28.2 oz) (including batteries)
Accessories: Zero adjustment board ×1, Instruction manual ×1, Precautions concerning use of equipment that emits radio waves (only for the BT3554-01) ×1, Application software CD ×1, Power-on option sticker ×1, Carrying case ×1, LR6 (AA) alkaline batteries ×8, Spare fuse ×1, USB cable ×1, Pin Type Lead 9465-10 ×1, Neck strap ×1

Datasheet
