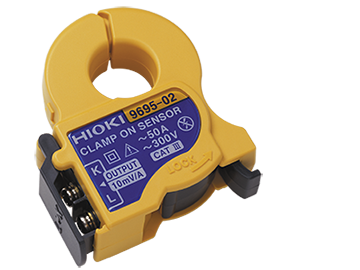

Hioki 9695-02 AC CURRENT SENSOR (50A AC)

- Primary current rating 50 A AC
- Max. allowable input Continuous 60 Arms (45 to 66 Hz)
- Output voltage AC 10 mV/ A
- Amplitude accuracy ±0.3 % rdg. ±0.02 % f.s. (45 to 66 Hz)
- Phase accuracy ±2° (45 to 5 kHz)
- Frequency characteristics 40 Hz to 5 kHz: ±1.0 % (Amplitude deviation from accuracy)
- Max. rated voltage to earth Less than 300 Vrms (Insulated conductor)
- Core diameter φ 15 mm (0.59 in)
- Power supply Not required
- Dimensions and mass 50.5 mm (1.99 in)W × 58 mm (2.28 in)H × 18.7 mm (0.74 in)D, 50 g (1.8 oz)
- Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter)
- Option: Connection cable 9219 (3 m, 9.84 ft length)

- Primary current rating    50 A AC
- Max. allowable input    Continuous 60 Arms (45 to 66 Hz)
- Output voltage    AC 10 mV/ A
- Amplitude accuracy    ±0.3 % rdg. ±0.02 % f.s. (45 to 66 Hz)
- Phase accuracy    ±2° (45 to 5 kHz)
- Frequency characteristics    40 Hz to 5 kHz: ±1.0 % (Amplitude deviation from accuracy)
- Max. rated voltage to earth    Less than 300 Vrms (Insulated conductor)
- Core diameter    φ 15 mm (0.59 in)
- Power supply    Not required
- Dimensions and mass    50.5 mm (1.99 in)W × 58 mm (2.28 in)H × 18.7 mm (0.74 in)D, 50 g (1.8 oz)
- Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter)
- Option: Connection cable 9219 (3 m, 9.84 ft length)
