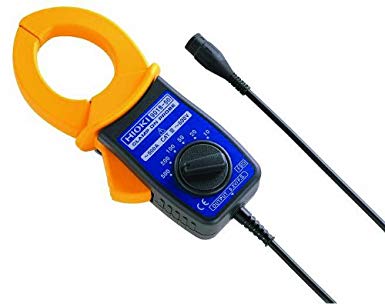

Hioki 9018-50 AC CURRENT SENSOR (10 A to 500 A AC)

- Rated current : 10 A to 500 A AC, 6 ranges
- Accuracy: ±1.5 % rdg. ±0.1 % f.s. (45 to 66 Hz)
- Frequency characteristics: Add to amplitude accuracy : ± 1 % rdg.
Add to phase accuracy : ± 2.5 ° for frequencies from 40 Hz to 3 kHz
- Output rate: 0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
- Max. allowable input: 150 A rms continuous (10/20/50 A ranges)
400 A rms continuous (100/200 A ranges)
650 A rms continuous (500 A range)
(For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)
- Max. rated voltage to earth: 600 Vrms (50/60 Hz, CAT III)
- Core diameter: φ46 mm (1.81 in)
- Dimensions and mass: 78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 420 g (14.8 oz), cord length: 3 m (9.84 ft)
- Accessories: Instruction manual ×11
