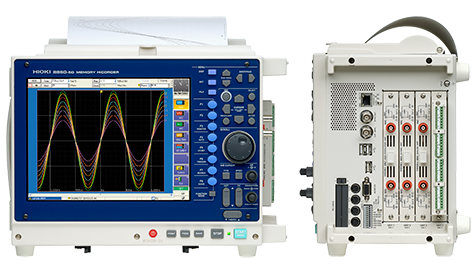

Specification
- Number of input units: Max. 8 units
- Number of channels:
+ Max. 32 analog channels
+ standard 16 logic channels
- Measurement ranges: 5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range
- Max. allowable input: DC 400V
- Frequency characteristics: DC to 10MHz
- Time axis: 5 µs to 5 min/div, 26 ranges, sampling period : 1/100 of range, external sampling, dual timebase possible
- Measurement functions: MEM (high-speed recording) REC (real-time recording) REC & MEM (realtime recording + high-speed recording) FFT (frequency analysis) Real-time Save (records directly to storage media)
- Storage memory capacity: 12-bits × 32M-Words/ch (1ch at 8860-50, 2ch at 8861-50) to 2M-Words/ch (16ch at 8860-50, 32ch at 8861-50) *Memory capacity can be expanded 32 times.(Optional memory board)
- Removable storage: SD Card slot × 1, USB 2.0 memory
- Recording paper: (option) A4: 216 mm (8.50 in) × 30 m (98.43 ft), or A6: 112 mm (4.41 in) × 18 m (59.06 ft) selectable, thermal paper roll, Recording speed : Max. 25 mm (0.98 in)/sec
- Display: 10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
- Communication interfaces: GP-IB (PC card), USB2.0 (series A receptacle 3 ports), LAN (HTTP/FTP/ Send mail or other), Monitor output (15-pin D-sub, SVGA output)
- Power supply:
+ 100 to 240 V AC (50/60 Hz) (220 VA max. printer not used)
+ 12 V DC (use the DC POWER UNIT 9684 : option, factory installation only)
- Dimensions, mass: 330 mm (12.99 in) W × 250 mm (9.84 in) H × 284.5 mm (11.20 in) D, 10.5 kg (370.4 oz) (printer not installed)
- Supplied accessories:Power cord × 1, Input cord label × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1
- The warranty period: 12 month
