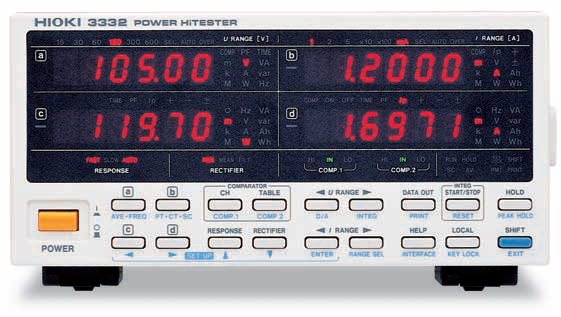

Hioki 3332 POWER HiTESTER

Measurement lines : Single-phase 2-wires
Measurement items : Voltage, Current, Current peak, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Power integration, Current integration
Measurement ranges : Voltage range: 15/ 30/ 60/ 150/ 300/ 600 V AC
Current range: 1/ 2/ 5/ 10/ 20/ 50/ 100/ 200/ 500 mA, 1/ 2/ 5/ 10/ 20/ 50 A AC
Depends on combination of voltage and current range
(Power range: 15.000 mW to 30.000 kW)
Frequency range: Auto/ 500 Hz/ 100 kHz (select voltage or current)
Input resistance (50/60 Hz) : Voltage: 2 MΩ, Current: 2 mΩ or less (direct input)
Basic accuracy : ±0.1 % rdg. ±0.1 % f.s. (active power, at 45 to 66 Hz)
Display refresh rate : 5 times/second
Frequency characteristics : 1 Hz to 100 kHz
Integration measurement : Data update time: 5 times/sec, Measurement range: 0.00000 m to ±999999 MAh/MWh, (integration time up to 10,000 hours)
Wave peak measurement : Current (displays maximum absolute value),
Effective input range: Six times the current range, or Max. 90 A peak
D/A output : Number of channels: 1 ch,
Output items: Voltage, Current, Current peak, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Integration
Analog output : Voltage, Current, Power simultaneously, DC ±5 V f.s.
Monitor output : Voltage, Current simultaneously (waveform output), 1 Vrms f.s.
Other functions : Comparator function for 2 measurement items (Decision for Hi /In /Lo and results output), Backup, Scaling, Average function
Interface : RS-232C, GP-IB standard
Power requirements : 100 to 240 V AC, 50/60 Hz, 40 VA max. (at 100 to 120 V AC), 50 VA max. (at 200 to 240 V AC)
Dimensions, mass : 210 mm (8.27 in) W × 100 mm (3.94 in) H × 261 mm (10.28 in) D, 2.7 kg (95.2 oz)
Supplied accessories : Instruction Manual × 1, Power cord × 1, Connector for EXT I/O × 1
