Basic Specifications:

Withstanding Test Section

Testing Voltage:

0 to 2.5 kV / 0 to 5.0 kV AC, dual-range configuration (Average value rectified, effective value display)
500 VA (maximum 30 minutes)

Voltage Setting Method:

Manually setting

Waveform:

Same as the power supply waveform

Frequency:

Same as the power supply frequency

Measurement Range:

Current: 0.01 mA to 120 mA, ±(3 % f.s. +20 µA) 2 mA/8 mA/32 mA/120 mA AC (Average value rectified, effective value display)

Basic Specifications:

Insulation Test Section

Testing Voltage:

500 V DC/1000 V DC

Measurement Range:

2 M-Ohm to 2000 M-Ohm (500 V), 4 M-Ohm to 2000 M-Ohm (1000 V)

Basic Specifications:

General

Judgement Function:

Contents: UPPER-FAIL / PASS / LOWER-FAIL (Digital setting window comparator method)

Timer Section:

Setting range: 0.5 to 999 seconds

Interfaces:

EXT I/O, EXT SW, RS-232C

Display:

Fluorescent tube display (digital), Analog meter

Monitor Function:

Output voltage, detection current

Power Supply:

220 V AC, 50/60 Hz

Dimensions:

320 mm(12.60 in)W × 155 mm(6.10 in)H × 330 mm(12.99 in)D

Weight:

18 kg (634.9 oz)

Accessories:

9615 H.V. TEST LEAD (high voltage side and return, 1 each), Power cord (1), spare fuse (1)

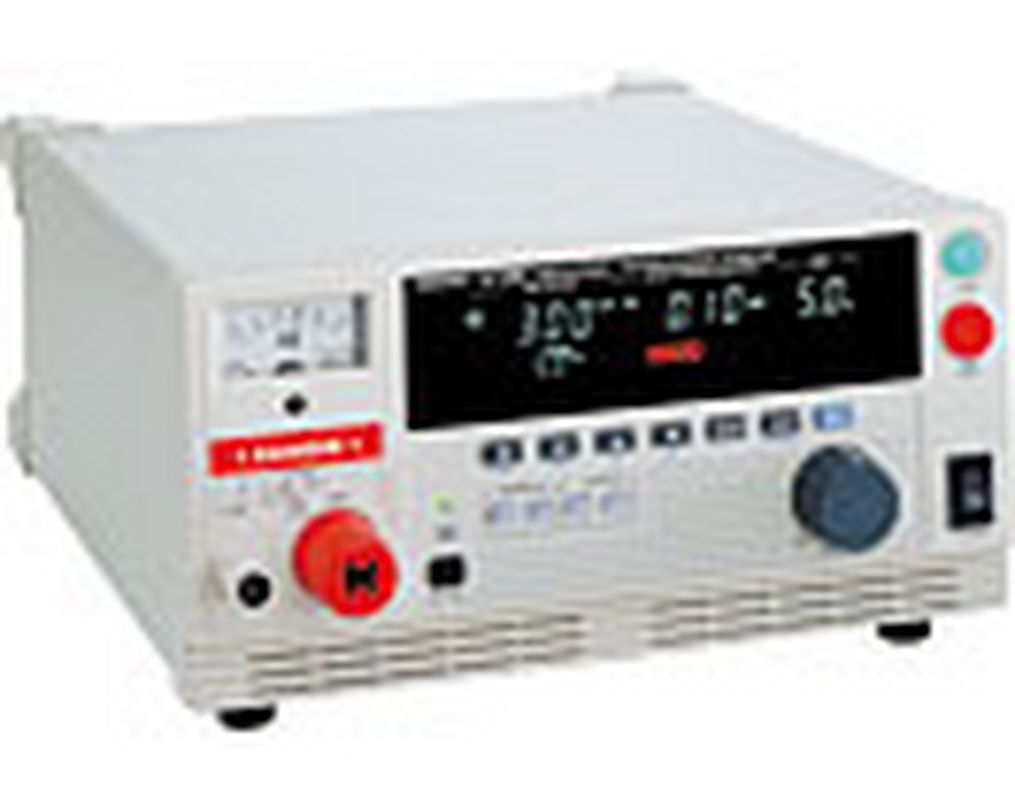

Hioki 3159-02 AC AUTOMATIC INSULATION/ WITHSTANDING HiTESTER
