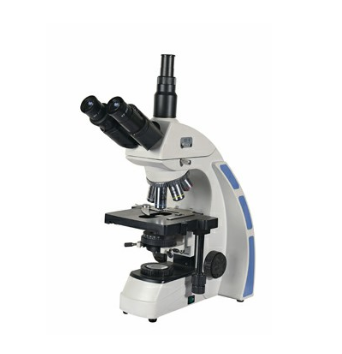

HINOTEK XSZ-166T Biological Microscope (4X, 10X, 40X(s), 100X(s)oil)

Viewing head: Compensation free trinocular head, inclined at 30°（48mm-75mm）

Eyepiece: WF10×/22mm

Objective: infinite Semi-Plan objective:4×，10×，40×(s)，100×ion(s)Oil

Stage: Double layers mechanical stage; Stage Size：180mm×160mm

Condenser: N.A.1.25Abbe condenser with iris diaphragm & filter holder

Focusing: Coaxial coarse & fine focusing adjustment with rack and pinion mechanism , fine focusing scale value 0.002mm

Light Source: Halogen bulb 12V30W. AC85V-230V (Adjustable brightness)

Collector: High brightness Kohler illumination

Optional Accessory: Eyepiece：WF16×、WF20× 、P16×

and 3.0Mega CMOS Digital camera eyepiece

infinite Semi-Plan objective：20× (s)、60×(s)、

infinite Plan Objective：4×、10× 、20× 、40×(s)、60×(s)、100×(s)Oil

Light Source：LED, Adjustable brightness

Phase contrast attachment

Photography attachment and CCD C-mount:0.5X、 0.57X、0.75X、1X

1.3Mega、2.0Mega 、3.0Mega、5.0Mega、10.0Mega

pixels CMOS Digital camera eyepiece

CCD Camera,color 1/3 High resolution 700 TV lines
