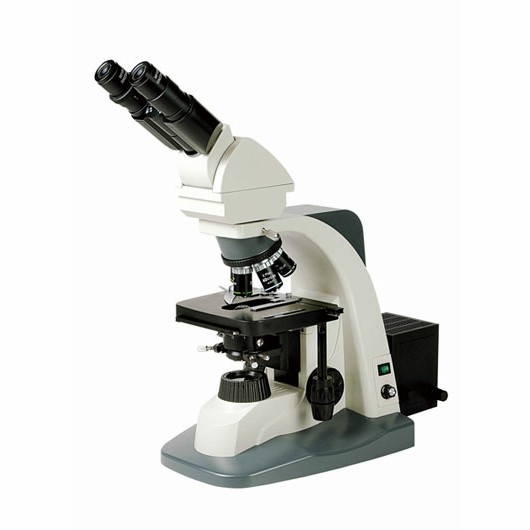

HINOTEK XSZ-158 Biological Microscope (4X,10X,40X(S),100X(S) Oil)

Viewing head: Compensation Free Binocular Head,Inclined adjustment 0 ° -40 °; Compensation Free Trinocular Head ,Inclined adjustment 0 ° -40 °(options)

Interpupillary Distance: 55mm -75mm

Eyepiece: WF10X/ 22mm; WF16X,WF20X,WF25X,P16X (options)

Nosepiece: Quintuple nosepiece; Sextuple nosepiece (options)

Objective: Infinity plan objectives:4X,10X,40X(S),100X(S) Oil; Infinity plan objectives:20X(S),60X(S)(options)

Stage: Double layers mechanical stage; Stage size:180mmX 160mm; Moving range :75mmX 50mm

Condenser: Swing type N. A.1.25 Abbe condenser with iris diaphragm&filter

Focusing: Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm

Collector: Kohler illumination

Light source: Halogen bulb12V/30W 12V/50W or 12V/100W.AC85-230V; Adjustable brightness

Optional Accessory: Fluorescent attachment

Phase contrast attachment

Dry&Immersion dark field condenser

Simple polarization attachment

3.0or1.3Mega pixel, CMOS electronic eyepiece
