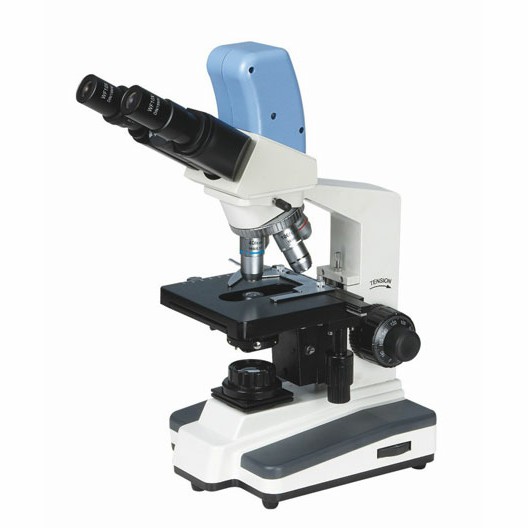

HINOTEK XSZ-137NS Digital Microscope

Viewing Head: Compensation Free 1.3 Mage pixels CMOS Digital Binocular Head, Inclined at 30°（55mm-75mm）

Eyepiece: WF10×/18mm

Objective: Achromatic Objectives 4×10×40 ×(s)100×(s)Oil

Condenser: N.A.1.25 Abbe Condenser with iris diaphragm & filters

Focusing: Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm

Collector: High brightness stationary illumination

Light Source: Halogen Bulb 6V20W. AC85V-230V Adjustable brightness

Compact disc:

- Driver software(suitable for Windows XP/Vista)

- Professional software for digital microscope (Image preview, Measurement,

- Image process) Operation Manual for installing driver and software

Optional Accessory

- Eyepiece: WF16×, WF20×

- Objectives:20×、60(s)、Plan

- Objectives：4×10× 20× 40×(s)60×(s)100×(s)Oil、Infinity Plan

- Objectives：4×10× 20× 40×(s)60×(s)100×(s)Oil、

- 2.0Mega、3.0 Mega、5.0 Mega pixels COMS Digital camera eyepiece

- Compensation Free Binocular & Trinocular Head（48mm-75mm）
