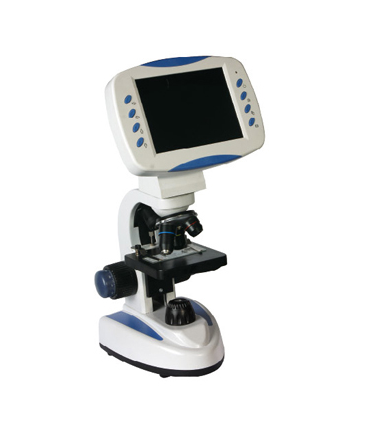

HINOTEK XSP-116SP LCD Microscope

Viewing Head: 5.6 Inches LCD Viewing head

Objective: 185 Achromatic objective 4X,10X,40X,100X

Stage: Double layers mechanical stage; Stage Size: 110mm*126mm; Moving Range:70mm*20mm

Condenser: N.A.1.25 Abbe Condenser with iris diaphragm and filter

Focusing: Coaxial coarse & fine focusing adjustment; Fine focusing scale value 0.002mm

Light Source: LED

Optional Accessory: Objective:20X.60X(S),4G SD Card, USB Line, AV Line

Digital Specification:

LCD Screen: 5.6inches,4:3TFT color

Magnification: 15X

Screen Resolution: 640*480

Chip Resolution: 1600*1200

Chip Size: 1/3inches

Support Mode: 1.USB Computer image out2.AV image out

Image Store: SD Card(Support 8G)

Exposure Mode: AUTO Exposure

Scene Mode: Standard.Soft.Bright-colored

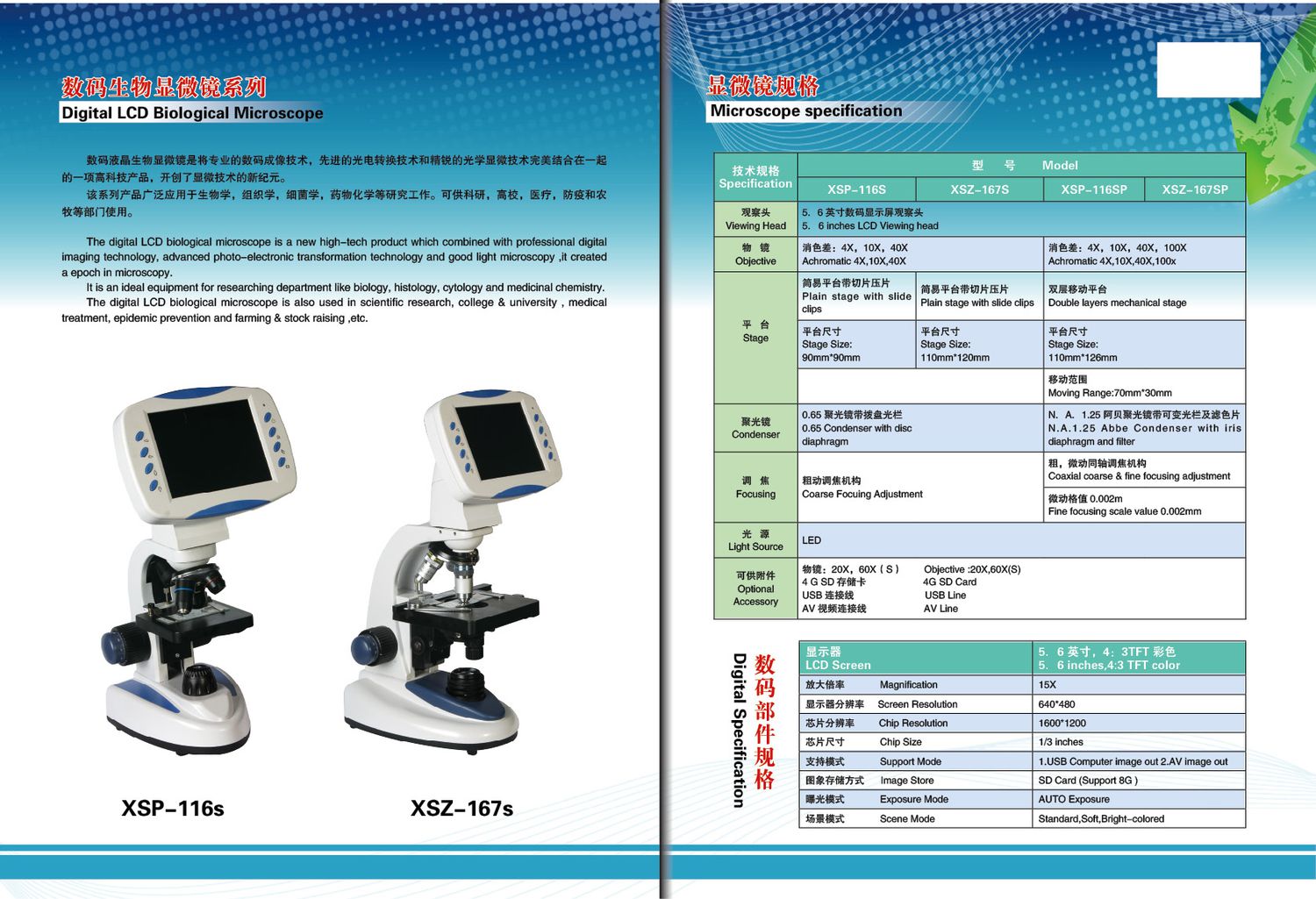

Brochure
