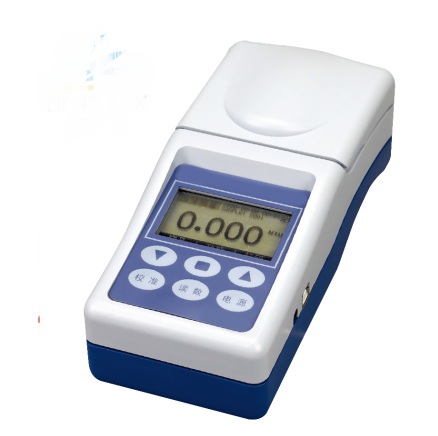

HINOTEK WGZ-20B Portable Ratio Turbidimeter (0.00-20.0 NTU)

Light source: LED; 860nm(Wavelength)

Unit switches: NTU, FTU, EBC, ASBC

Measurement range NTU: 0.00-20.0

Readings display: LCD

Minimum reading: 0.001

Allowable error of indication: ≤±6%

Zero Drift: ≤±0.5%FS

Stability of indication: ≤±0.5%FS

Repeatability: ≤0.5%

Sample bottle: Φ 25 mm×65 mm

Sample volume: 20–25 ml

Interface: USB

Data storage: 2000 sets

Calibration modes: 2

Weight (Gross): 3kg

Overall dimensions: 380mm×280mm ×250mm
