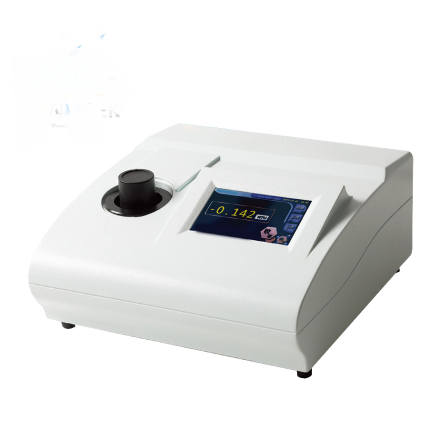

HINOTEK WGZ-2000 Ratio Turbidimeter (0.00-50.0, 50.1-200, 200.1-2000 NTU)

Light source: Tungsten halogen lamp 6V, 10W

Receiving element: Silicon photocell

Measurement range NTU: 0.00-50.0; 50.1-200; 200.1-2000 (automatic range switchover)

Readings display: LCD Touch Screen

Minimum reading: 0.001

Allowable error of indication: ≤±6%

Zero Drift: ≤±0.3%FS

Stability of indication: ≤±1%FS

Repeatability: ≤0.5%

Sample bottle: Φ 25 mm×95 mm

Data storage: 1000 sets

Calibration modes: 6

Sample volume: 30–40 ml

Interface: USB/U disk

Weight (Gross): 9kg

Overall dimensions: 430mm×430mm×300mm
