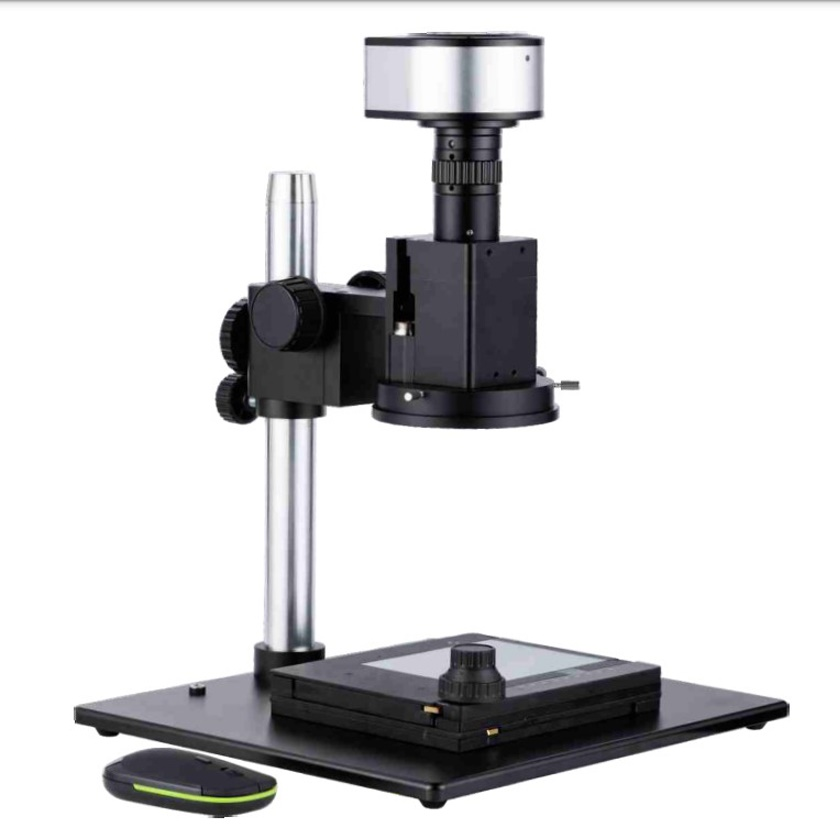

HINOTEK TDM-650MP Digital Microscope

Viewing Head: 1920*1080

Pixel Size: 3.75×3.75μm

The output format: HDMI

The sensor: 1/2″ Sony sensor

Frame rate: 60/FPS

The image is stored: (BMP or JPG photo storage) Taking Photos and video

Optical path design: Parallel to the optical path

Optical Zoom: 0.6-5.0X

Field: 12×6.75 – 1.44×0.81mm

Working distance: 86mm

Total Magnification: 28-240x (based on 15.6 inch display)

Ligthning system: Four-zonal dimming LED / ring light

Calibration free functions: There is no need to recalibrate when variability changes

Measurement functions: Support point, line, parallel line, circle, arc, Angle, rectangle, polygon measurement, etc.

Way of changing times: Electric cruise doubled

Mode of Operation: The mouse button
