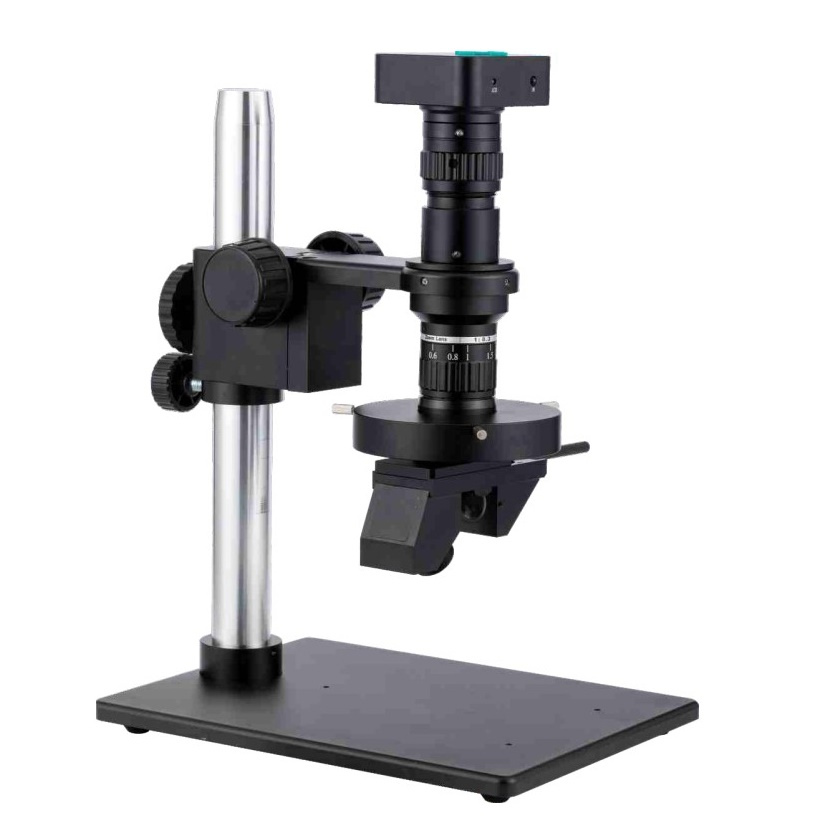

HINOTEK TDM-6303DMP Digital Microscope

Viewing Head: 1920*1080

Pixel Size: 3.75×3.75μm

The output format: HDMI

The sensor: 1/2″ Sony sensor

Frame rate: 60/FPS

The image is stored: (BMP or JPG photo storage) Taking Photos and video

Optical path design: Parallel to the optical path

Optical Zoom: 0.6-5.0X

Field: 12×6.75 – 1.44×0.81mm

Working distance: 86mm

Total Magnification: 28-240x (based on 15.6 inch display)

Ligthning system: Four-zonal dimming LED / ring light

Way of changing times: Manually changing times

The 3d viewer: 0° ~ 45° manual switch

Mode of Operation: The mouse button

Accessories: The mobile platform; Select the zoom lens and auxiallry objective lens according to the use requirement

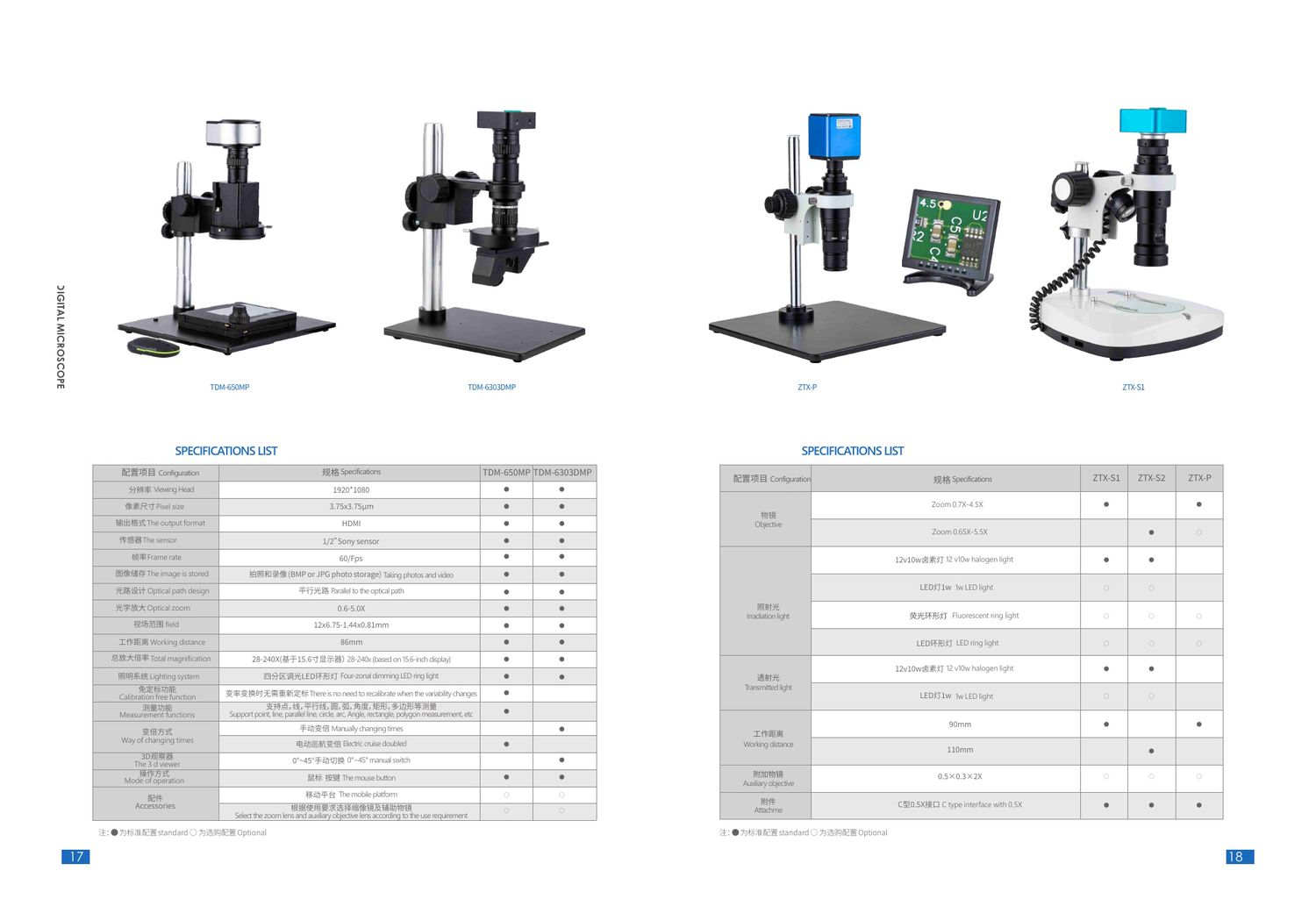

Brochure
