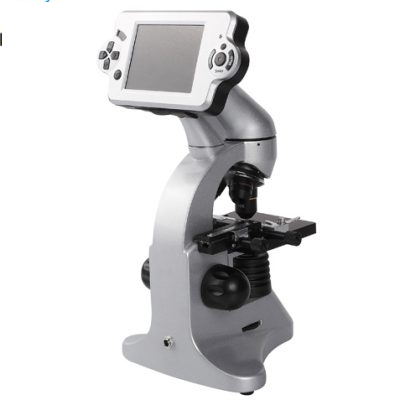

HINOTEK SP-45LCD LCD Microscope (40X ~ 400X)

LED Display Monitor

Camera: 2.0MP CMOS Chip, Resolution 1600*1200

Display Monitor: 3.6″ TFT in focus display

Resolution: 960*240

Memory: 128MB

USB Line: USB2.0 MINI

Exterior Memory: SD

Digital Focal Variation: 8X

Power: DC-5V, 1A

Microscope

Total Magnification: 40X ~ 400X

Eyepiece: WF10X LED Display Monitor

Objectives: 4X, 10X, 40X(s)

Eyepiece Tube: Monocular 45 degree Inclined Tube Rotatable 360 degree

Lighting System: Top and Bottom Light, LED Light

Working Distance: 27mm

Coarse Movement Distance: 13mm

Working Area: 90mm * 90mm with mobile foot

Condenser: 0.65 condenser, pulling plate light bar
