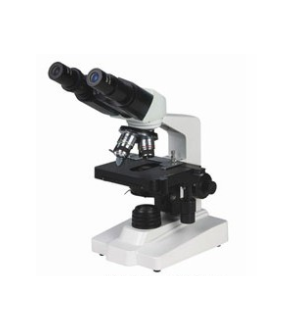

HINOTEK SME-F8BH Biological Microscope (4X-100X)

Viewing Head: Compensation Free Binocular Head,Inclined at 30° (55mm- 75mm)

Eyepiece: WF10X/18mm

Objective: Achromatic 4X, 10X, 40X(S), 100X(S) Oil

Stage: Double layers mechanical stage; Stage size: 110mm×126m; Moving range:70mm×30mm

Condenser: N.A.1.25 Abbe Condenser with iris diaphragm And filter

Focusing: Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm

Light Source: Halogen bulb 6V/20W,AC 220V/110V

Optional Accessory

Eyepiece: WF16X, WF20X, P16X

Objective: 20X, 60X(S)

Compensation Free Binocular & Trinocular Head (48mm-75mm)

LED illumination
