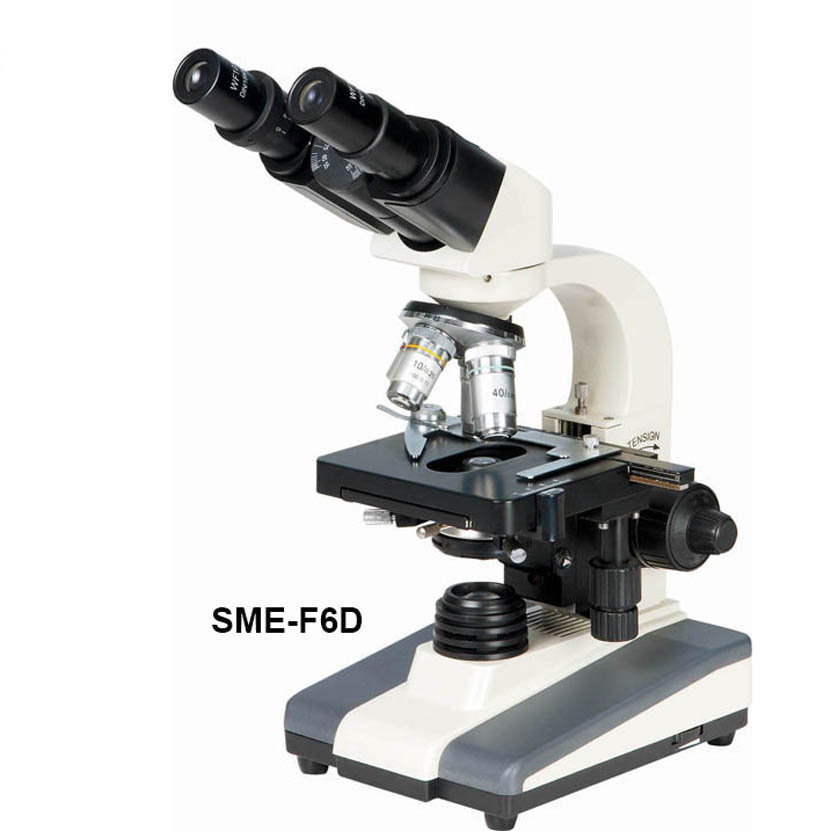

HINOTEK SME-F6D Biological Microscope

Viewing Head: Compensation Free Binocular Head, Inclined at 30°(55mm-75mm)

Eyepiece: WF10x/18mm

Objective: Achromatic 4x, 10x, 40x(s), 100x(s, oil)

Stage: Double layers mechanical stage, Stage size: 125*130 mm, Moving Range: 70*30 mm

Condenser: N.A.1.25 Abbe Condenser with iris diaphragm and filter

Focusing: Coaxial coarse & fine focusing adjustment, Fine focusing scale value 0.002mm, Focusing Range 30mm

Light Source: Halogen bulb 6V/20W, AC 220V/110V

Optinal Accessory:

Eyepiece: WF16x, WF20x, P16x

Objective: 20x, 60x(s)

Compensation Free Binocular & Trinocular Head(48mm-75mm)

LED illumination

Brochure
