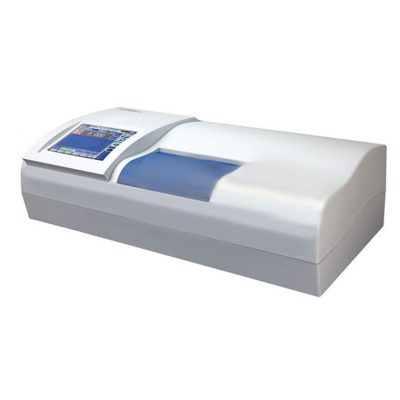

HINOTEK SGW-537 High-Speed Automatic Polarimeter (±90°, ±259°Z, 0.001°)

Measurement mode: Optical rotation, specific rotation, sugar degree and concentration(Custom)

Frequently used methods: 300

Light source: 20W Tungsten halogen lamp

Working wavelength:

Standard: 546, 589nm

Optional: 365, 405, 436, 578, 633nm

Measurement range: ±90°（Rotation）; ±259°Z（Sugar）

Minimum reading: 0.001°

Accuracy: ±0.004°

Repeatability: ≤0.002°

Min. transmission of samples able to be measured: 0.1%

Response speed: 8°/S

Measurement time: 6 times/26s

Sample temperature control: Yes

Temperature Control mode: Peltier(Built-in)

Temperature Control range: 10-50℃

Temperature Control accuracy: ±0.2℃

Operation system: WINDOWS

Display: 8-inch color dot matrix touch LCD

Calibration method: Multi-point automatic calibration

Data storage: 16G Database

GMP Regulations: Qualified

Output communication interface: USB/Keyboard/Mouse/Universal Printer/VGA/Ethernet/Optical wireless card for wireless internet access

Test tubes: 200mm,100mm(regular); 100mm(temp control)

Optional tubes: 50mm(regular); 200mm(temp control)

Weight(Gross): 36kg

Dimensions: 860mmx510mmx470mm

Datasheet
