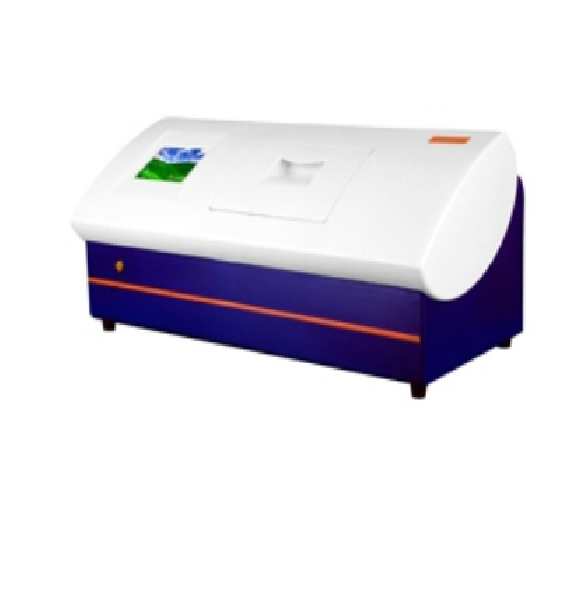

HINOTEK P850A Automatic Polarimeter (89.99°; ±259°Z)

Measuring range: 89.99°; ±259°Z

Min.reading: 0.001°(optical rotation)

Accuracy: ±0.01° (-45°≤optical rotation≤+45°); ±0.02°(optical rotation<-45° or optical rotation>+45°)

Repeatability (standard deviation s):0.002°(optical rotation)

Measurable sample min.transmittance:1%

Working wavelength: 589.3nm (sodium D spectrum)

Temperature control mode: built-in semiconductor

Temperature control range: 15°C~30°C

Temperature control accuracy: ±0.3°C

Temperature resolution: 0.1°C

Interface: USB and RS232

Data storage capacity: 1000 pieces

Display mode: 5.6" TFT touch screen

Power supply: 220VAC±10% 50Hz

Sample Chamber: Accepts sample tubes up to 200mm

Power: 250W

Net weight: 24kg

Calibration mode: automatic calibration

Dimension: 708mm*330mm*287mm
