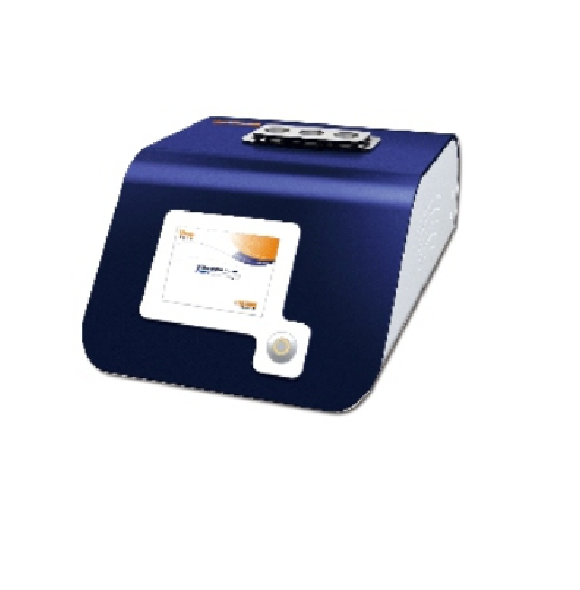

HINOTEK MP300 Auto Melting Point Apparatus

Range: room tem.+5°C--400°C

Initial temperature" setting rate:

- ≤7 min(50°C--400°C)

- ≤7.5 min(400°C--50°C)

Temperature resolution: 0.1°C

Repeatability: 0.2°C at heating rate of 0.2°C/min

Temperature accuracy: ±0.4°C (<200°C), ±0.7°C (<300°C)

Temperature gradients: 0.1--5°C/min(default 0.1°C/min, 50 classes)

Standard capillary size: I.D. 1.0mm, O.D. 1.4mm

Capacity per batch: 3pc./batch (3 different samples)

Control&Display model: LCD color touch screen

Power supply: 220VAC±10% 50Hz

Power: 300W

Net weight: 17kg

Dimensions: 523mm*332mm*216mm
