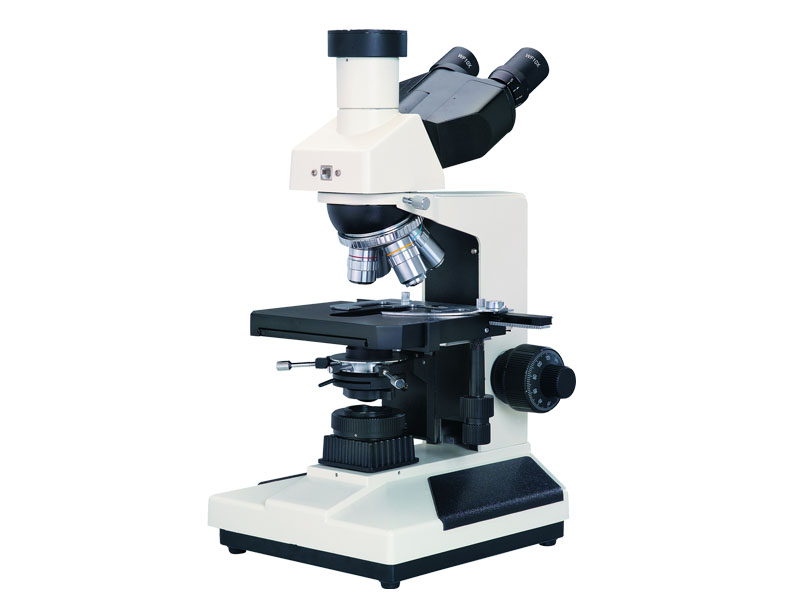

HINOTEK MC-2080 Digital Microscope

Eyepiece: WF10X(∅20mm)

Objective:

- Plan achromatic PL 4X/0.10

- Plan achromatic PL 10X/0.25

- Plan achromatic PL 40X/0.65(Spring)

- Plan achromatic PL 100X/1.25(Spring, oil)

Digital trinocular:

- Built-in clear color 1/3” CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0 White balance: Automatic/Manual.

- System requirement：Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X Linux

Focus system: Coaxial coarse/fine focus system, the adjustable tensional control and adjustable up stop, minimum division of fine focusing: 2μm

Nosepiece: Quadruple(Backward ball bearing inner locating)

Stage: Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: With field diagram for halogen lamp

Light source: 6V 20W Halogen lamp with brightness control
