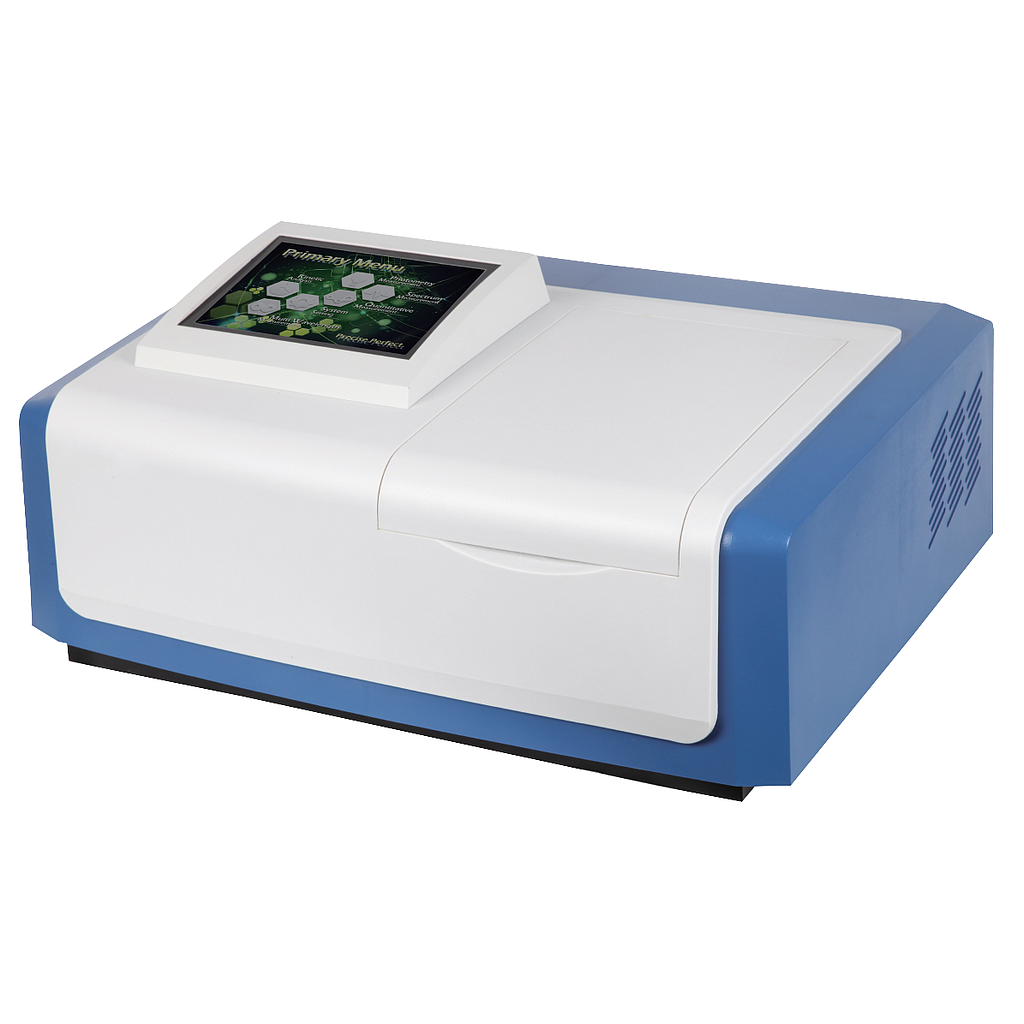

HINOTEK L6S Split Beam VIS Spectrophotometer (190-1100nm)

Photometry: Split Beam

Monochromator Type: Czerny-Turner

Focal Length: 160mm

Grating: 1200 lines/mm

Detector: Silicon Photocell

Spectrum Bandwidth: 2nm

Wavelength Setting: 8-inch color touch-screen

Wavelength Range: 190-1100nm

Wavelength Accuracy: ±0.5nm

Wavelength Repeatability: ≤0.2nm

Photometric Range: 0.0-200.0%T, -0.301-4.000A, 0.000-9999C

Photometric Accuracy:±0.3%T, ±0.002Abs (0-0.5A) ,±0.004 Abs (0.5-1A)

Photometric Repeatability: ≤0.15%T, 0.001 Abs (0-0.5A), 0.002 Abs (0.5-1A)

Scanning Speed: Fast-Medium-Slow

Baseline: ≤±0.002A （200 1090nm）

Stray Light: ≤0.03%T ( at 220nm NaI, 360nm NaNo2 )

Noise: 100%（T）noise≤0.15%(T)，0%（T）noise≤0.1%(T)

Drifting: ±0.0009 Abs/30min (at 250nm and 500nm after 2h warm up)

Power: AC220V±22V 50Hz±1Hz,200W

Packaging Size: 710mm X 590mm X 505mm 0.21M ^3 40kg

Standard Accessories:

- Operation manual 1

- Glass cuvette 1cm 4pcs

- Quartz cuvette 1cm 2pcs

- Power cable 1

- Fuse 2pcs

- Cuvette holder 10mm

Optional Accessories:

- UV WIN8 Spectrum data processing software

- Thermal Plotter

- Cuvette holder 100mm

- Cuvette holder 50m
